2806 FPV Motor

The 2806 FPV is a high-performance brushless motor engineered specifically for 7-inch and 8-inch long-range FPV drones. Combining lightweight architecture with high torque, it provides excellent efficiency and responsive handling. This documentation covers the 1300 KV variant with detailed specifications and test data.

Key Features:

• High Efficiency: Optimized for long-range cruising missions
• Robust Bearings: Premium Dual 685-2z bearings for ultra-smooth operation
• Propeller Mount: M5 shaft compatibility with anti-slip locknuts
• Lightweight design (50g) for agile performance
• High power density (up to 8.2 W/g maximum)

1300 KV

1300 KV - Specifications

Motor Specifications:

• KV Rating: 1300 RPM/V
• Kt (Motor Torque Constant): 0.0087 Nm/A @ 16636 RPM
• Weight: 50 g ± 2 g
• Max Thrust: 1,465g (with Gemfan 70×40 TRI-BLADE CFRP_FP prop)
• Voltage Range: 18V – 24V (6S LiPo)
• Io (No Load Current @ 24V): 0.7A
• Max Continuous Current: 16A (180s)
• Max Continuous Power: 392.0W (180s)
• Power Density: 4.8 W/g (Rated), 8.2 W/g (Maximum)
• Motor Diameter: Ø 33 mm
• Motor Length: 22.4 mm
• Shaft Diameter: Ø 5 mm
• Stator Poles: 12S
• Magnetic Poles: 14P
• Bearings: Dual 685-2z
• Inductance per phase (Winding Inductance): 0.0277 (≈0.03) mH
• Resistance per phase (Rph): 0.082 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M3 @ PCD Ø 19 mm, depth: 3.5 mm
• Compatible Propeller Size: 7" to 8"
• Propeller Mount Pattern: M5, depth: 10 mm

Test Data - 1300 KV

Gemfan 70 x 40 TRI-BLADE CFRP_FP (HW 40A 6S XRotor)

Test Conditions:

• ESC: HW 40A 6S XRotor
• Battery: HWB - 22000 mAh 6S
• Test Date: 30-08-2025
• Environmental Temp: 24°C
• Humidity: 93%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.0	1.9	8316	196	0.030	26.1	4.1	53°C (@70% 10 min Constant)
1400	40	24.9	3.7	10517	320	0.050	55.0	3.5	53°C (@70% 10 min Constant)
1500	50	24.8	6.4	12529	470	0.070	91.8	3.0	53°C (@70% 10 min Constant)
1600	60	24.7	10.4	14674	678	0.100	153.6	2.6	53°C (@70% 10 min Constant)
1700	70	24.5	16.0	16636	901	0.140	243.8	2.3	53°C (@70% 10 min Constant)
1800	80	24.3	22.4	18309	1109	0.170	325.8	2.0	59°C (Maximum)
1900	90	24.0	29.9	19430	1336	0.200	406.7	1.9	59°C (Maximum)
1950	95	24.0	31.2	19622	1358	0.210	431.3	1.8	59°C (Maximum)
2000	100	24.0	30.9	19637	1362	0.200	411.1	1.8	59°C (Maximum)

Gemfan 70 x 40 TRI-BLADE CFRP_FP (ZERODRAG 4-IN-1 55A 6S)

Test Conditions:

• ESC: ZERODRAG 4-IN-1 55A 6S
• Battery: HWB - 22000 mAh 6S
• Test Date: 07-11-2025
• Environmental Temp: 24°C
• Humidity: 53%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	24.9	1.9	7352	238	0.000	48.5	4.9	75°C (@70% 10 min Constant)
1400	40	24.8	3.9	9315	398	0.100	97.6	4.1	75°C (@70% 10 min Constant)
1500	50	24.7	6.8	11102	585	0.100	169.4	3.5	75°C (@70% 10 min Constant)
1600	60	24.6	10.8	12843	779	0.100	265.7	2.9	75°C (@70% 10 min Constant)
1700	70	24.4	15.4	14109	959	0.100	375.5	2.6	75°C (@70% 10 min Constant)
1800	80	24.3	20.5	15357	1132	0.200	498.0	2.3	80°C (Maximum)
1900	90	24.1	26.6	16393	1307	0.200	639.5	2.0	80°C (Maximum)
1950	95	23.9	29.9	16899	1396	0.200	716.7	1.9	80°C (Maximum)
2000	100	23.8	33.3	17304	1465	0.200	794.2	1.8	80°C (Maximum)

Gemfan 70 x 40 TRI-BLADE CFRP_FP (GenX 4S)

Test Conditions:

• ESC: HW 40A 6S XRotor
• Battery: GenX - 5200 mAh 4S
• Test Date: 13-11-2025
• Environmental Temp: 25°C
• Humidity: 31%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	16.54	1.77	6839	130	0.021	29.3	4.4	60°C (@70% 10 min Constant)
1400	40	16.47	2.80	8150	194	0.030	46.1	4.2	60°C (@70% 10 min Constant)
1500	50	16.40	3.98	9277	262	0.040	65.3	4.0	60°C (@70% 10 min Constant)
1600	60	16.31	5.80	10609	353	0.052	94.6	3.7	60°C (@70% 10 min Constant)
1700	70	16.18	8.14	11927	455	0.067	131.7	3.5	60°C (@70% 10 min Constant)
1800	80	16.01	11.08	13250	568	0.084	177.4	3.2	65°C (Maximum)
1900	90	15.83	14.82	14502	699	0.103	234.6	3.0	65°C (Maximum)
1950	95	15.74	16.76	15090	758	0.112	263.8	2.8	65°C (Maximum)
2000	100	15.68	18.07	15455	797	0.117	283.3	2.8	65°C (Maximum)

Gemfan 80 x 40 TRI-BLADE CFRP_FP (GenX 4S)

Test Conditions:

• ESC: HW 40A 6S
• Battery: GenX - 5200 mAh 4S
• Test Date: 11-11-2025
• Environmental Temp: 25°C
• Humidity: 31%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	16.52	1.93	5364	177	0.030	31.9	5.6	75°C (@70% 10 min Constant)
1400	40	16.42	3.66	6735	314	0.049	60.1	5.2	75°C (@70% 10 min Constant)
1500	50	16.28	6.32	8133	463	0.075	102.9	4.5	75°C (@70% 10 min Constant)
1600	60	16.10	9.39	9321	586	0.097	151.2	3.9	75°C (@70% 10 min Constant)
1700	70	15.89	13.04	10311	740	0.121	207.2	3.6	75°C (@70% 10 min Constant)
1800	80	15.66	17.34	11240	869	0.145	271.5	3.2	80°C (Maximum)
1900	90	15.40	22.30	12051	1007	0.169	343.4	2.9	80°C (Maximum)
1950	95	15.27	25.06	12499	1078	0.181	382.7	2.8	80°C (Maximum)
2000	100	15.19	26.68	12719	1120	0.188	405.2	2.7	80°C (Maximum)

Performance Summary:

• Best Efficiency: Gemfan 80×40 (GenX 4S) @ 30% throttle (5.6 g/W, 177g thrust)
• Maximum Thrust: Gemfan 70×40 (ZERODRAG 6S) @ 100% throttle (1,465g thrust, 1.8 g/W)
• Balanced Performance: Gemfan 70×40 (HW 40A 6S) @ 50% throttle (3.0 g/W, 470g thrust)
• Operating Temperature: 53-80°C depending on load and ESC
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 1300 KV

• 7" to 8" Long-range FPV drones
• Cinematic FPV platforms
• High-speed chasing applications
• Mid-to-heavy freestyle FPV

Common Resources

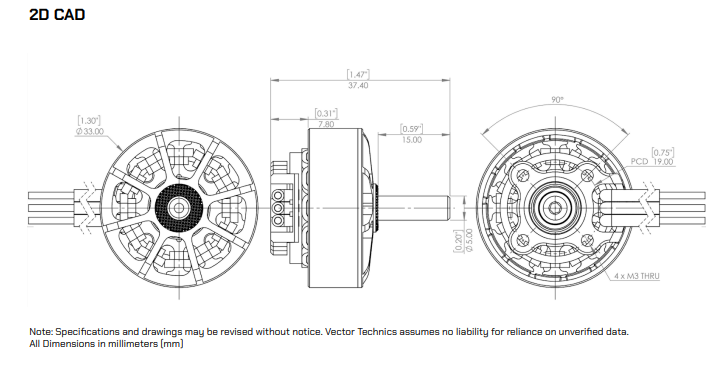

2D CAD Drawing

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 2806 FPV motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M3 @ PCD Ø 19 mm, depth: 3.5 mm
• Propeller Mount Pattern: M5, depth: 10 mm
• Motor Diameter: Ø 33 mm
• Motor Length: 22.4 mm
• Stick Out Shaft Diameter: Ø 5 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
40A	General purpose	Standard BLHeli_32
55A+	High performance	Advanced telemetry, 4-in-1 capable

ESC Requirements:

• Continuous rating: 40A minimum (55A recommended)
• Voltage support: 4S-6S (16-25V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
Gemfan 70×40	Medium	Balanced performance & efficiency	Excellent
Gemfan 80×40	Medium	High efficiency for 8" builds	Excellent

Propeller Selection Guidelines:

• Use 7" to 8" triblade propellers for best balance of efficiency and thrust
• Always check for propeller clearance on your FPV frame
• Ensure M5 locknuts are fully secured before flight

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long-range cruising)

   • Motor: 2806 FPV 1300KV
   • Propeller: Gemfan 70×40
   • ESC: 40A Individual or 4-in-1
   • Battery: 6S Li-Ion or LiPo
   • Expected Performance: Excellent cruising efficiency at lower throttle

2. Performance Build (Cinematic/Freestyle)

   • Motor: 2806 FPV 1300KV
   • Propeller: Gemfan 70×40
   • ESC: 55A+ 4-in-1
   • Battery: 6S LiPo
   • Expected Performance: High thrust bursts up to 1,465g per motor

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M3 bolts)
• Locknut security on M5 shaft
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Electrical connection integrity check
• Replace propeller if worn

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>80°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Dual 685-2z
• Service Interval: 100-150 flight hours (typical)

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached for extended periods
• Ensure proper cooling during operation
• Monitor motor temperature - do not exceed 80°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 4S-6S LiPo batteries (16-25V range)
• Do not exceed maximum continuous current (16A @ 180s)
• Ensure proper battery discharge rates (C-rating)

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt depth (3.5mm for motor mount)
• Maintain adequate clearance to frame
• Use proper size mounting hardware (M3 for frame, M5 for propeller)

Emergency Procedures:

• If motor overheats (>80°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: August 2026
• Product Code: VT-2806FPV-1300KV
• Document ID: VT-DOC-2806FPV-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
