2308 PRO Propeller Set
The 2308 PRO Propeller Set is a 23-inch foldable carbon fiber propeller designed for medium to heavy-lift UAV platforms. It provides high thrust output, structural rigidity, and precise balance for stable and efficient flight performance.
Key Features:
- High-stiffness carbon fiber reinforced blades
- Precision-balanced pair (0.05 g tolerance)
- Foldable design for transport efficiency
- UV-resistant finish for outdoor durability
- Optimized for medium-heavy lift UAV platforms
- 5mm Mount
- 6mm Mount
Specifications – 5mm Mount Version
| Parameter | Specification |
|---|---|
| Diameter | 23 in |
| Pitch | 8 in |
| Propeller Material | Carbon Fiber Reinforced Polymer |
| UV Protection | Yes |
| Recommended Thrust | 5.5–7.5 kg (Bi-Blade Configuration) |
| Maximum Thrust | 9 kg @ 5800 RPM |
| Operational Temperature | -40 to 70 °C |
| Weight (Single Blade) | 27 g ± 1 g |
| Weight (Pair) | 54 g ± 1 g |
| Weight Balance | Balanced to 0.05 g (Pair) |
| Propeller Type | Foldable |
| Mounting Hole Diameter | 5 mm |
Specifications – 6mm Mount Version
| Parameter | Specification |
|---|---|
| Diameter | 23 in |
| Pitch | 8 in |
| Propeller Material | Carbon Fiber Reinforced Polymer |
| UV Protection | Yes |
| Recommended Thrust | 5.5–7.5 kg (Bi-Blade Configuration) |
| Maximum Thrust | 9 kg @ 5800 RPM |
| Operational Temperature | -40 to 70 °C |
| Weight (Single Blade) | 27 g ± 1 g |
| Weight (Pair) | 54 g ± 1 g |
| Mount Weight | 30 g ± 1 g |
| Weight Balance | Balanced to 0.05 g (Pair) |
| Propeller Type | Foldable |
| Mounting Hole Diameter | 6 mm |

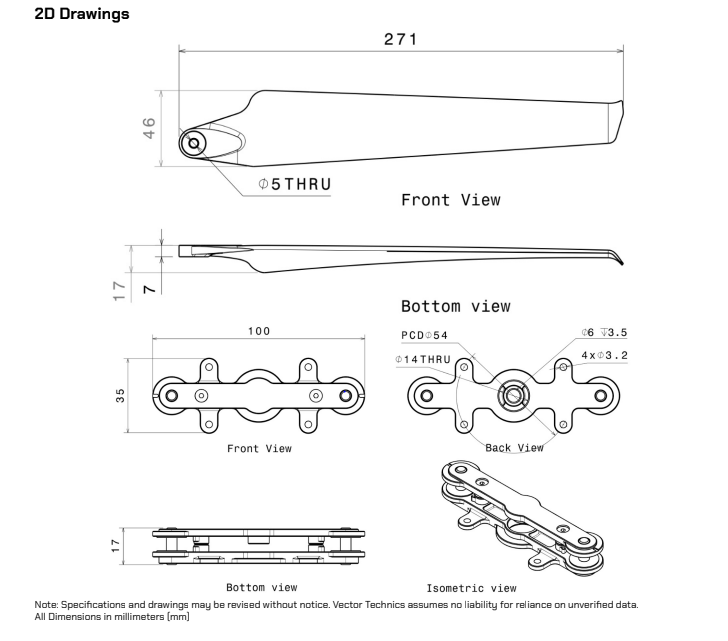

2D CAD Drawing
Installation & Safety Guidelines
⚠️ Important Safety Information
- Do not exceed maximum rated speed (5800 RPM)
- Operate only within temperature range (-40°C to 70°C)
- Always verify correct mount size (5mm or 6mm)
- Ensure proper blade locking before flight
- Inspect blades for cracks or delamination before every flight
- Replace immediately if structural damage is detected
Recommended Applications
- Medium-heavy lift UAVs
- Industrial drone platforms
- Mapping and survey UAVs
- Agricultural spraying drones
Document Information
- Revision: 1.0
- Last Updated: February 2026
- Product Code: VT-2308-PRO
- Document ID: VT-DOC-2308-01
Specifications may be revised without notice.
