5215 FW Motor
The 5215 FW is designed for civilian mapping UAVs and long-endurance survey aircraft operating on 6S LiPo configurations. This documentation covers the 480 KV variant with detailed specifications and test data.
Key Features:
- Long Output Shaft: Matches common fixed-wing collet adapters
- Excellent Cruise Efficiency: Optimized for 40% to 50% load cruising
- Robust Bearings: Premium Dual 696-ZZ Sealed bearings for ultra-smooth operation
- Lightweight design (280g) for agile performance
- High power density (up to 6.20 W/g maximum)
- 480 KV
480 KV - Specifications
Motor Specifications:
- KV Rating: 480 RPM/V
- Kt (Motor Torque Constant): 1.07 Nm/A @ 3561 RPM
- Weight: 280 g ± 2 g
- Max Thrust: 4,152g (with 15×10 EP_FX prop)
- Voltage Range: 22V – 25V (6S LiPo)
- Io (No Load Current @ 24V): 5.51A
- Max Continuous Current: 45A (180s)
- Max Continuous Power: 1073W (180s)
- Power Density: 3.83 W/g (Rated), 6.203 W/g (Maximum)
- Motor Diameter: Ø 35.5 mm
- Motor Length: 35.5 mm
- Shaft Diameter: Ø 4.8 mm
- Stator Poles: 24S
- Magnetic Poles: 22P
- Bearings: Dual 696-ZZ Sealed
- Inductance per phase (Winding Inductance): 0.012 (≈0.03) mH
- Resistance per phase (Rph): 0.02 (≈0.03) Ω
- Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 30 mm, depth: 5 mm
- Compatible Propeller Size: 14" to 16"
- Propeller Mount Pattern: 8 × M3 @ PCD Ø 12 mm, Ø 20 mm, depth: 6 mm
Test Data - 480 KV
15 x 10 EP_FX Propeller
Test Conditions:
- ESC: 80A 6S
- Battery: TB - 22000 mAh 6S
- Test Date: 12-04-2025
- Environmental Temp: 38°C
- Humidity: 36%
- Cross-winds: Mild
| PWM | Throttle % | Voltage (V) | Current (A) | RPM | Thrust (g) | Torque (N·m) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 1300 | 30 | 25.20 | 2.60 | 2503 | 431 | 0.110 | 65.5 | 6.6 | 53°C (@70% 10 min Constant) |
| 1400 | 40 | 25.10 | 6.00 | 3739 | 901 | 0.230 | 150.6 | 6.0 | 53°C (@70% 10 min Constant) |
| 1500 | 50 | 24.90 | 11.10 | 4804 | 1493 | 0.390 | 276.4 | 5.4 | 53°C (@70% 10 min Constant) |
| 1600 | 60 | 24.60 | 20.10 | 5923 | 2327 | 0.620 | 494.5 | 4.7 | 53°C (@70% 10 min Constant) |
| 1700 | 70 | 24.30 | 31.50 | 2920 | 2920 | 0.850 | 765.5 | 3.8 | 53°C (@70% 10 min Constant) |
| 1800 | 80 | 23.80 | 45.10 | 3561 | 3561 | 1.070 | 1073.4 | 3.3 | 58°C (Maximum) |
| 1900 | 90 | 23.30 | 62.30 | 8200 | 3870 | 1.320 | 1451.6 | 2.7 | 58°C (Maximum) |
| 1950 | 95 | 23.00 | 71.10 | 8475 | 4063 | 1.430 | 1635.3 | 2.5 | 58°C (Maximum) |
| 2000 | 100 | 22.80 | 76.20 | 8612 | 4152 | 1.500 | 1737.4 | 2.4 | 58°C (Maximum) |
Performance Summary:
- Best Efficiency: 15×10 EP_FX @ 30% throttle (6.6 g/W, 431g thrust)
- Maximum Thrust: 15×10 EP_FX @ 100% throttle (4,152g thrust, 2.4 g/W)
- Balanced Performance: 15×10 EP_FX @ 50% throttle (5.4 g/W, 1,493g thrust)
- Operating Temperature: 53-58°C depending on load
- Recommended Continuous: 70% throttle max for sustained flight
Recommended Applications - 480 KV
- Mid-range mapping UAVs
- Civilian survey fixed-wing aircraft
- Lightweight VTOL platforms
Common Resources

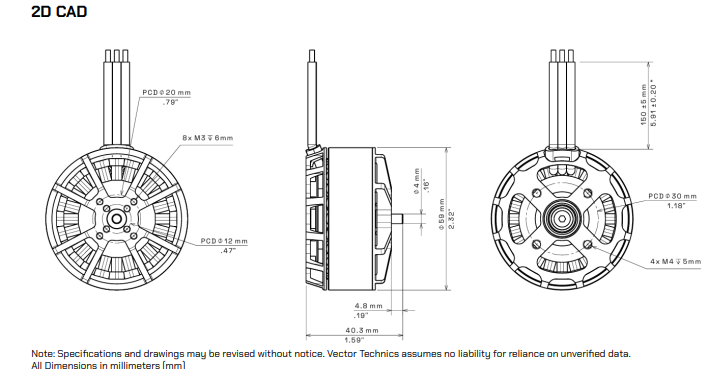

2D CAD Drawing
The 2D CAD drawing provides detailed dimensions and mounting specifications for the 5215 FW motor.
Drawing Specifications:
- Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 30 mm, depth: 5 mm
- Propeller Mount Pattern: 8 × M3 @ PCD Ø 12 mm, Ø 20 mm, depth: 6 mm
- Motor Diameter: Ø 35.5 mm
- Motor Length: 35.5 mm
- Stick Out Shaft Diameter: Ø 4.8 mm
Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.
Recommended ESC & Propeller
Compatible ESCs
Recommended Configurations:
| ESC Rating | Application | Features |
|---|---|---|
| 60A | General purpose | Standard BLHeli_32 |
| 80A+ | High performance | Advanced telemetry, robust cooling |
ESC Requirements:
- Continuous rating: 60A minimum (80A recommended)
- Voltage support: 6S (22-25V) capable
- Protocol: DShot600 or higher recommended
- Features: Active braking, telemetry support
For detailed ESC specifications and compatibility, see ESC Overview.
Compatible Propellers
Tested Propeller Configurations:
| Propeller Size | Pitch | Application | Performance |
|---|---|---|---|
| 15×10 EP_FX | High | Balanced performance & efficiency | Excellent |
Propeller Selection Guidelines:
- Use 14" to 16" propellers for best balance of efficiency and thrust
- Always check for propeller clearance on your fixed-wing aircraft
- Ensure mounting bolts are fully secured before flight
For more propeller options, see Propeller Overview.
System Integration
Complete System Recommendations:
-
Efficiency Build (Long-range cruising)
- Motor: 5215 FW 480KV
- Propeller: 14×8 or 15×8
- ESC: 60A Individual
- Battery: 6S Li-Ion or LiPo
- Expected Performance: Excellent cruising efficiency at lower throttle
-
Performance Build (Heavy mapping payloads)
- Motor: 5215 FW 480KV
- Propeller: 15×10 EP_FX
- ESC: 80A+
- Battery: 6S LiPo
- Expected Performance: High thrust bursts up to 4,152g per motor
Maintenance and Inspection
Pre-Flight Checks
Before every flight:
- Visual inspection for physical damage
- Propeller balance and condition check
- Mounting bolt security verification (M4 bolts)
- Locknut security on propeller mount (M3 bolts)
- Brief spin test (listen for unusual sounds)
Periodic Maintenance Schedule
Every 10 Flight Hours:
- Re-torque mounting bolts to specification
- Check bearing smoothness (manual rotation)
- Clean motor exterior with compressed air
- Inspect propeller for wear or damage
Every 50 Flight Hours:
- Detailed bearing inspection
- Electrical connection integrity check
- Replace propeller if worn
Signs Requiring Immediate Inspection:
- Unusual vibration during operation
- Increased motor temperature (>60°C)
- Grinding or scraping sounds
- Reduced thrust output
- Propeller wobble
Bearing Replacement
Bearing Specifications:
- Type: Dual 696-ZZ Sealed
- Service Interval: 100-150 flight hours (typical)
Signs of Bearing Wear:
- Grinding or rattling sounds
- Increased vibration
- Shaft play or wobble
- Difficulty rotating by hand
- Increased operating temperature
Safety Notes
⚠️ Important Safety Information
Operational Safety:
- Never run motor without propeller attached for extended periods
- Ensure proper cooling during operation
- Monitor motor temperature - do not exceed 60°C for sustained periods
- Inspect motor bearings regularly for wear
- Replace damaged propellers immediately
Electrical Safety:
- Verify correct ESC wiring before first power-up
- Use only 6S LiPo batteries (22-25V range)
- Do not exceed maximum continuous current (45A @ 180s)
- Ensure proper battery discharge rates (C-rating)
Installation Safety:
- Follow torque specifications exactly
- Never exceed maximum bolt depth (5mm for motor mount)
- Maintain adequate clearance to fuselage
- Use proper size mounting hardware (M4 for motor, M3 for propeller)
Emergency Procedures:
- If motor overheats (>60°C), land immediately
- If unusual vibration occurs, stop operation
- If motor makes grinding sounds, inspect bearings
Technical Support & Resources
Contact Information
- Technical Support: support@vectortechnics.com
- Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)
Related Documentation
Next Steps:
- Review Installation Guide for mounting procedures
- Select compatible ESC from tested configurations
- Choose optimal propeller based on application
- Review Motor Overview for system integration
Document Information:
- Revision: 1.0
- Last Updated: August 2026
- Product Code: VT-5215FW-480KV
- Document ID: VT-DOC-5215FW-01
Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
