6040 FW Motor
The 6040 FW is designed for civilian mapping UAVs and long-endurance survey aircraft operating on 12S LiPo configurations. This documentation covers the 160 KV variant with detailed specifications and test data.
Key Features:
- High Thrust Output: Up to 18,641g for large-scale aircraft
- Excellent Cruise Efficiency: Optimized for high endurance operations
- Robust Bearings: Premium Triple Sealed bearings (2 x 619/6-2Z, 1 x 628/8-2Z)
- Threaded Shaft: M10 LH output shaft
- High power density (up to 5.76 W/g maximum)
- 160 KV
160 KV - Specifications
Motor Specifications:
- KV Rating: 160 RPM/V
- Kt (Motor Torque Constant): 0.0843 Nm/A @ 3918 RPM
- Weight: 865 g ± 2%
- Max Thrust: 18,641g (with TM 30×10.5 CF_FX prop)
- Voltage Range: 44V – 50V (12S LiPo)
- Io (No Load Current @ 48V): 3.7A
- Max Continuous Current: 52A (180s)
- Max Continuous Power: 2391W (180s)
- Power Density: 2.76 W/g (Rated), 5.76 W/g (Maximum)
- Motor Diameter: Ø 80 mm
- Motor Length: 67 mm
- Shaft Diameter: M10 LH
- Stator Poles: 24S
- Magnetic Poles: 28P
- Bearings: Triple (2 x 619/6-2Z Sealed, 1 x 628/8-2Z Sealed)
- Inductance per phase (Winding Inductance): 0.027 (≈0.03) mH
- Resistance per phase (Rph): 0.03 (≈0.03) Ω
- Motor Mount Pattern @ 90°: 4 × Ø 5.3 @ PCD Ø 90 mm, depth: THRU mm
- Compatible Propeller Size: 28" to 30"
- Propeller Mount Pattern: M10 LH
Test Data - 160 KV
TM 26 x 8.5 CF_FX Propeller
Test Conditions:
- ESC: TM 200A 12S - FLAME
- Battery: 2 × TB - 22000 mAh 12S
- Test Date: 16-11-2024
- Environmental Temp: 28°C
- Humidity: 32%
- Cross-winds: Mild
| PWM | Throttle % | Voltage (V) | Current (A) | RPM | Thrust (g) | Torque (N·m) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 1300 | 30 | 49.70 | 2.00 | 1710 | 958 | 0.320 | 99.4 | 9.6 | 46°C (@70% 10 min Constant) |
| 1400 | 40 | 49.60 | 5.00 | 2469 | 2143 | 0.670 | 248.0 | 8.6 | 46°C (@70% 10 min Constant) |
| 1500 | 50 | 49.10 | 9.80 | 3170 | 3599 | 1.110 | 481.2 | 7.5 | 46°C (@70% 10 min Constant) |
| 1600 | 60 | 48.40 | 17.40 | 3884 | 5456 | 1.660 | 842.2 | 6.5 | 46°C (@70% 10 min Constant) |
| 1700 | 70 | 47.60 | 29.20 | 4599 | 7792 | 2.340 | 1389.9 | 5.6 | 46°C (@70% 10 min Constant) |
| 1800 | 80 | 46.70 | 41.30 | 5114 | 9821 | 2.920 | 1928.7 | 5.1 | 49°C (Maximum) |
| 1900 | 90 | 45.80 | 55.10 | 5611 | 11571 | 3.500 | 2523.6 | 4.6 | 49°C (Maximum) |
| 1950 | 95 | 44.60 | 71.90 | 6046 | 13503 | 4.090 | 3206.7 | 4.2 | 49°C (Maximum) |
| 2000 | 100 | 44.60 | 71.90 | 6046 | 13503 | 4.090 | 3206.7 | 4.2 | 49°C (Maximum) |
TM 28 x 8.4 CF_FX Propeller
Test Conditions:
- ESC: TM 200A 12S - FLAME
- Battery: 2 × TB - 22000 mAh 12S
- Test Date: 16-11-2024
- Environmental Temp: 28°C
- Humidity: 32%
- Cross-winds: Mild
| PWM | Throttle % | Voltage (V) | Current (A) | RPM | Thrust (g) | Torque (N·m) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 1300 | 30 | 49.40 | 2.70 | 1725 | 1412 | 0.450 | 133.4 | 10.6 | 52°C (@70% 10 min Constant) |
| 1400 | 40 | 49.20 | 6.20 | 2378 | 2797 | 0.880 | 305.0 | 9.2 | 52°C (@70% 10 min Constant) |
| 1500 | 50 | 48.90 | 12.30 | 3045 | 4584 | 1.460 | 601.5 | 7.6 | 52°C (@70% 10 min Constant) |
| 1600 | 60 | 48.20 | 23.00 | 3774 | 7057 | 2.250 | 1108.6 | 6.4 | 52°C (@70% 10 min Constant) |
| 1700 | 70 | 47.30 | 37.90 | 4393 | 9712 | 3.120 | 1792.7 | 5.4 | 52°C (@70% 10 min Constant) |
| 1800 | 80 | 46.20 | 54.10 | 4823 | 12077 | 3.910 | 2499.4 | 4.8 | 58°C (Maximum) |
| 1900 | 90 | 45.10 | 72.80 | 5258 | 14218 | 4.690 | 3283.3 | 4.3 | 58°C (Maximum) |
| 1950 | 95 | 43.80 | 93.70 | 5573 | 16231 | 5.440 | 4104.1 | 4.0 | 58°C (Maximum) |
| 2000 | 100 | 43.80 | 93.70 | 5573 | 16231 | 5.440 | 4104.1 | 4.0 | 58°C (Maximum) |
TM 30 x 10.5 CF_FX Propeller
Test Conditions:
- ESC: TM 200A 12S - FLAME
- Battery: 2 × TB - 22000 mAh 12S
- Test Date: 16-11-2024
- Environmental Temp: 28°C
- Humidity: 32%
- Cross-winds: Mild
| PWM | Throttle % | Voltage (V) | Current (A) | RPM | Thrust (g) | Torque (N·m) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 1300 | 30 | 49.20 | 3.50 | 1593 | 1981 | 0.730 | 172.2 | 11.5 | 57°C (@70% 10 min Constant) |
| 1400 | 40 | 49.10 | 9.00 | 2243 | 4011 | 1.450 | 441.9 | 9.1 | 57°C (@70% 10 min Constant) |
| 1500 | 50 | 48.40 | 17.20 | 2776 | 6198 | 2.220 | 832.5 | 7.4 | 57°C (@70% 10 min Constant) |
| 1600 | 60 | 47.20 | 34.50 | 3478 | 9746 | 3.490 | 1628.4 | 6.0 | 57°C (@70% 10 min Constant) |
| 1700 | 70 | 45.90 | 52.10 | 3918 | 12332 | 4.420 | 2391.4 | 5.2 | 57°C (@70% 10 min Constant) |
| 1800 | 80 | 44.30 | 74.10 | 4283 | 14808 | 5.400 | 3282.6 | 4.5 | 63°C (Maximum) |
| 1900 | 90 | 42.90 | 95.80 | 4576 | 16738 | 6.100 | 4109.8 | 4.1 | 63°C (Maximum) |
| 1950 | 95 | 41.30 | 120.80 | 4809 | 18641 | 6.850 | 4989.0 | 3.7 | 63°C (Maximum) |
| 2000 | 100 | 41.30 | 120.80 | 4809 | 18641 | 6.850 | 4989.0 | 3.7 | 63°C (Maximum) |
Performance Summary:
- Best Efficiency: TM 30×10.5 CF_FX @ 30% throttle (11.5 g/W, 1,981g thrust)
- Maximum Thrust: TM 30×10.5 CF_FX @ 100% throttle (18,641g thrust, 3.7 g/W)
- Balanced Performance: TM 28×8.4 CF_FX @ 50% throttle (7.6 g/W, 4,584g thrust)
- Operating Temperature: 46-63°C depending on load
- Recommended Continuous: 70% throttle max for sustained flight
Recommended Applications - 160 KV
- Large-scale mapping UAVs
- Heavy lift civilian survey fixed-wing aircraft
- Long-endurance large platforms
Common Resources

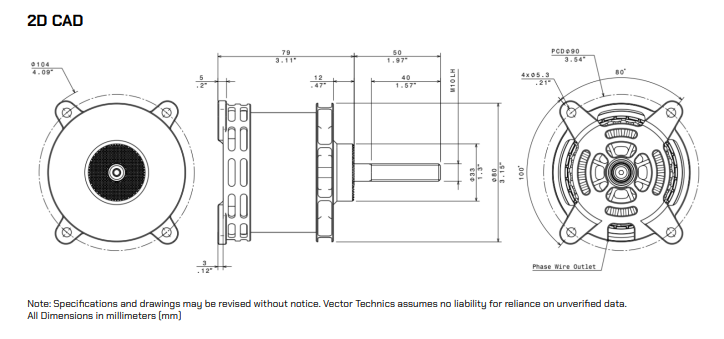

2D CAD Drawing
The 2D CAD drawing provides detailed dimensions and mounting specifications for the 6040 FW motor.
Drawing Specifications:
- Motor Mount Pattern @ 90°: 4 × Ø 5.3 @ PCD Ø 90 mm, depth: THRU mm
- Propeller Mount Pattern: M10 LH
- Motor Diameter: Ø 80 mm
- Motor Length: 67 mm
- Stick Out Shaft Diameter: M10 LH
Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.
Recommended ESC & Propeller
Compatible ESCs
Recommended Configurations:
| ESC Rating | Application | Features |
|---|---|---|
| 100A+ | General purpose | Standard BLHeli_32 / FOC |
| 200A | High performance | Advanced telemetry, robust cooling |
ESC Requirements:
- Continuous rating: 100A minimum (200A recommended)
- Voltage support: 12S (44-50V) capable
- Protocol: DShot600 or higher recommended
- Features: Active braking, telemetry support
For detailed ESC specifications and compatibility, see ESC Overview.
Compatible Propellers
Tested Propeller Configurations:
| Propeller Size | Pitch | Application | Performance |
|---|---|---|---|
| TM 30×10.5 CF_FX | High | Maximum thrust & efficiency | Excellent |
| TM 28×8.4 CF_FX | Medium | Balanced performance | Very Good |
| TM 26×8.5 CF_FX | Medium | High speed | Good |
Propeller Selection Guidelines:
- Use 28" to 30" propellers for best balance of efficiency and thrust
- Always check for propeller clearance on your fixed-wing aircraft
- Ensure M10 LH nut is fully secured before flight
For more propeller options, see Propeller Overview.
System Integration
Complete System Recommendations:
-
Efficiency Build (Long-range cruising)
- Motor: 6040 FW 160KV
- Propeller: TM 28×8.4 CF_FX
- ESC: 100A-150A Individual
- Battery: 12S Li-Ion or LiPo
- Expected Performance: Excellent cruising efficiency at lower throttle
-
Performance Build (Heavy payloads)
- Motor: 6040 FW 160KV
- Propeller: TM 30×10.5 CF_FX
- ESC: 200A+
- Battery: 12S LiPo
- Expected Performance: High thrust bursts up to 18,641g per motor
Maintenance and Inspection
Pre-Flight Checks
Before every flight:
- Visual inspection for physical damage
- Propeller balance and condition check
- Mounting bolt security verification
- Locknut security on M10 LH shaft
- Brief spin test (listen for unusual sounds)
Periodic Maintenance Schedule
Every 10 Flight Hours:
- Re-torque mounting bolts to specification
- Check bearing smoothness (manual rotation)
- Clean motor exterior with compressed air
- Inspect propeller for wear or damage
Every 50 Flight Hours:
- Detailed bearing inspection
- Electrical connection integrity check
- Replace propeller if worn
Signs Requiring Immediate Inspection:
- Unusual vibration during operation
- Increased motor temperature (>63°C)
- Grinding or scraping sounds
- Reduced thrust output
- Propeller wobble
Bearing Replacement
Bearing Specifications:
- Type: Triple (2 x 619/6-2Z Sealed, 1 x 628/8-2Z Sealed)
- Service Interval: 100-150 flight hours (typical)
Signs of Bearing Wear:
- Grinding or rattling sounds
- Increased vibration
- Shaft play or wobble
- Difficulty rotating by hand
- Increased operating temperature
Safety Notes
⚠️ Important Safety Information
Operational Safety:
- Never run motor without propeller attached for extended periods
- Ensure proper cooling during operation
- Monitor motor temperature - do not exceed 63°C for sustained periods
- Inspect motor bearings regularly for wear
- Replace damaged propellers immediately
Electrical Safety:
- Verify correct ESC wiring before first power-up
- Use only 12S LiPo batteries (44-50V range)
- Do not exceed maximum continuous current (52A @ 180s)
- Ensure proper battery discharge rates (C-rating)
Installation Safety:
- Follow torque specifications exactly
- Maintain adequate clearance to fuselage
- Ensure M10 left-hand thread nut is properly secured against rotation
Emergency Procedures:
- If motor overheats (>63°C), land immediately
- If unusual vibration occurs, stop operation
- If motor makes grinding sounds, inspect bearings
Technical Support & Resources
Contact Information
- Technical Support: support@vectortechnics.com
- Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)
Related Documentation
Next Steps:
- Review Installation Guide for mounting procedures
- Select compatible ESC from tested configurations
- Choose optimal propeller based on application
- Review Motor Overview for system integration
Document Information:
- Revision: 1.0
- Last Updated: August 2026
- Product Code: VT-6040FW-160KV
- Document ID: VT-DOC-6040FW-01
Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
