Powercore MK2 PDB
The Powercore MK2 PDB is a high-performance power distribution board designed for medium to heavy-lift UAV platforms. It delivers stable power distribution, accurate voltage and current monitoring, and multiple connector options for versatile integration.
Key Features:
- High peak current capacity (300 A) for heavy UAV power demands
- Supports 6S–14S battery configurations
- Dual DC-DC BEC outputs (5 V and 12 V) for powering multiple subsystems
- Multiple connector types and orientations for flexible wiring
- Analogue voltage and current sensing for real-time monitoring
- Compact and lightweight design with customizable input connectors
- High thermal tolerance up to 180 °C
- Standard Version
Specifications – Powercore MK2 PDB
| Parameter | Specification |
|---|---|
| Maximum Peak Current | 300 A |
| Voltage Range | 6S – 14S |
| External Voltage Levels | 12 V – 5 V |
| Connector 1 | 4 × XT60 Connectors (Female) |
| Connector 2 | 6 × XT60 Connectors (Right Angle Male) |
| Connector 3 | 2 × XT30 Connectors (Right Angle Female) |
| Voltage Measurement | 0–100 V Analogue Output (x mV/V) |
| Current Measurement | 0–100 V Analogue Output (y mV/V) |
| BEC 1 | DC-DC 5 V – 2 A Continuous |
| BEC 2 | DC-DC 12 V – 2 A Continuous |
| Max Temperature | 180 °C |
| Weight | 160 ± 2 g |
| Mounting Dimensions | 102 mm × 49 mm |
| Size (L × B × H) | 110 mm × 116 mm × 20 mm |
| Input Connectors | Customisable (Lugs or Wires) |

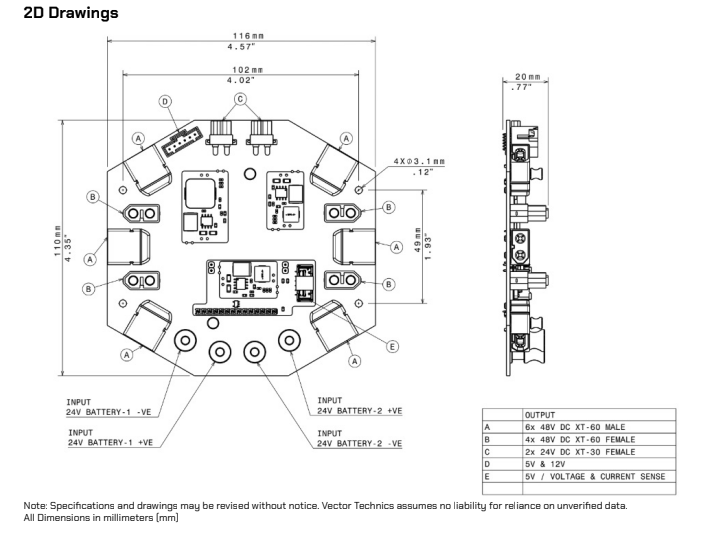

2D CAD Drawing
Installation & Safety Guidelines
⚠️ Important Safety Information
- Ensure all connectors are securely fastened before powering the system
- Operate within specified voltage and current ranges to prevent damage
- Verify adequate cooling and ventilation to maintain safe operating temperatures
- Inspect regularly for signs of wear or overheating
- Replace immediately if any physical or electrical faults are detected
Recommended Applications
- Medium to heavy-lift UAV platforms
- Industrial drone systems
- Surveying, mapping, and inspection drones
- UAVs requiring multiple voltage rails and high-current distribution
Document Information
- Revision: 1.0
- Last Updated: February 2026
- Product Code: VT-POWERCORE-MK2-PDB
- Document ID: VT-DOC-POWERCORE-MK2-01
Specifications may be revised without notice.
