Voltrox 5V BEC
The Voltrox 5V BEC is a compact, high-efficiency power supply module designed to provide a stable 5 V output from a wide input voltage range (15–100 V). It is ideal for UAV power systems requiring a reliable 5 V rail with up to 2 A output current.
Key Features:
- Compact and lightweight design for space-constrained applications
- Wide input voltage range (15–100 V) supports various battery configurations
- Stable 5 V regulated output with up to 2 A current capacity
- Protective features: undervoltage shutdown, overcurrent, and thermal shutdown
- Low ripple and noise for clean power to sensitive electronics
- Fast transient response (75 μsec) for steady voltage under load changes
- Compatible with multiple wire gauges (16–26 AWG) for flexible installation
- Standard Version
Specifications – Voltrox 5V BEC
| Parameter | Specification |
|---|---|
| Output Voltage | 5 V |
| Input Voltage Range | 15 V – 100 V |
| Under Voltage Shutdown | Yes |
| Output Current | 0 – 2 A |
| Short Circuit Current | 110 mA |
| Current Full Load | 0.61 A |
| Overcurrent Protection | Yes |
| Power Dissipation | 10 W |
| Accuracy | ±2% |
| Ripple & Noise | 80–120 mVp-p |
| Over Temperature Shutdown | After 120 °C |
| Transient Response | 75 μsec |
| Efficiency (%) | 85–90% |
| Operating Temperature | -40 to +120 °C |
| Weight | 4 ± 1 g |
| Compatible Wire Gauge | 16–26 AWG |
| Size (L × B × H) | 25 × 16 × 5 mm |
| Connectors | Dual (Wires or Bugstrip) |

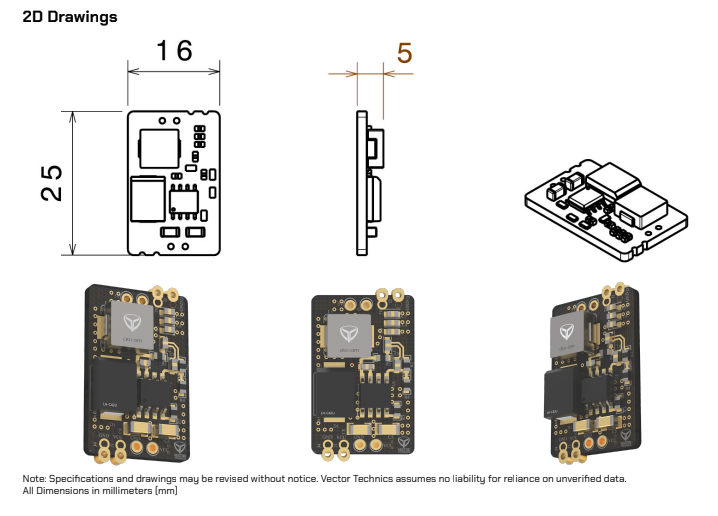

2D CAD Drawing
Installation & Safety Guidelines
⚠️ Important Safety Information
- Ensure proper polarity and secure connections before powering the system
- Operate within specified input and output voltage ranges to prevent damage
- Avoid overheating; allow adequate cooling during continuous operation
- Inspect regularly for any physical or electrical damage
- Replace immediately if protective features are triggered repeatedly
Recommended Applications
- UAVs requiring a reliable 5 V rail
- Embedded electronics and sensor modules
- Industrial or survey drones
- Low-power subsystem powering for multi-voltage UAV platforms
Document Information
- Revision: 1.0
- Last Updated: February 2026
- Product Code: VT-VOLTROX-5V-BEC
- Document ID: VT-DOC-VOLTROX-5V-BEC-01
Specifications may be revised without notice.
