Voltrox 12V BEC
The Voltrox 12V BEC is a robust and efficient power module designed to provide a stable 12 V output from a wide input voltage range (15–100 V). It delivers up to 2 A output current, making it suitable for powering 12 V subsystems in UAVs and other electronic applications.
Key Features:
- Compact design with optimized footprint for improved power dissipation
- Wide input voltage range (15–100 V) compatible with various battery configurations
- Stable 12 V regulated output with up to 2 A current capacity
- Protective features: undervoltage shutdown, overcurrent, and thermal shutdown
- Low ripple and noise for clean power to sensitive electronics
- Fast transient response (75 μsec) for stable voltage under dynamic load conditions
- Supports a wide range of wire gauges (16–26 AWG) for flexible installation
- Standard Version
Specifications – Voltrox 12V BEC
| Parameter | Specification |
|---|---|
| Output Voltage | 12 V |
| Input Voltage Range | 15 V – 100 V |
| Under Voltage Shutdown | Yes |
| Output Current | 0 – 2 A |
| Short Circuit Current | 110 mA |
| Current Full Load | 0.61 A |
| Overcurrent Protection | Yes |
| Power Dissipation | 24 W |
| Accuracy | ±2% |
| Ripple & Noise | 80–120 mVp-p |
| Over Temperature Shutdown | After 120 °C |
| Transient Response | 75 μsec |
| Efficiency (%) | 85–90% |
| Operating Temperature | -40 to +120 °C |
| Weight | 8 ± 1 g |
| Compatible Wire Gauge | 16–26 AWG |
| Size (L × B × H) | 31 × 20 × 8 mm |
| Connectors | Dual (Wires or Bugstrip) |

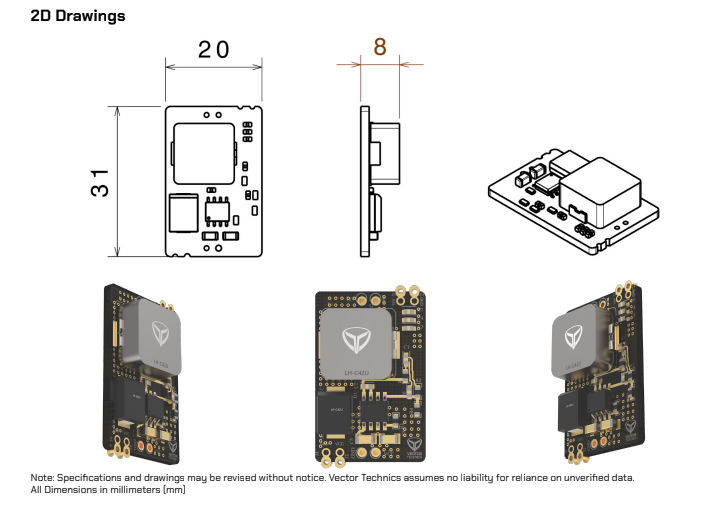

2D CAD Drawing
Installation & Safety Guidelines
⚠️ Important Safety Information
- Ensure proper polarity and secure connections before powering the system
- Operate within specified input and output voltage ranges to prevent damage
- Allow adequate cooling to avoid overheating during continuous operation
- Inspect regularly for any physical or electrical damage
- Replace immediately if protective features are triggered repeatedly
Recommended Applications
- UAV 12 V subsystems and sensors
- Embedded electronics and avionics modules
- Industrial, survey, or mapping drones
- Multi-voltage UAV platforms requiring a 12 V rail
Document Information
- Revision: 1.0
- Last Updated: February 2026
- Product Code: VT-VOLTROX-12V-BEC
- Document ID: VT-DOC-VOLTROX-12V-BEC-01
Specifications may be revised without notice.
