10005 SL Motor

The 10005 SL features a large diameter stator with an ultra-thin profile, maximizing torque while keeping weight to a bare minimum. This documentation covers the 90 KV variant with detailed specifications and test data.

Key Features:

• Pancake Geometry: Very thin stator for high magnetic leverage
• Extreme Efficiency: Built for ultra-long-endurance hover applications
• Optimized for 30"–32" propellers
• Lightweight design (277g) for agile performance
• High power density (up to 4.84 W/g maximum)

90 KV

90 KV - Specifications

Motor Specifications:

• KV Rating: 90 RPM/V
• Kt (Motor Torque Constant): 0.1468 Nm/A @ 2542 RPM
• Weight: 277 g ± 2 g
• Max Thrust: 7,500g (with 30×10.5 CF_FX prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (XX@V): 0.96 A (48@V)
• Max Continuous Current: 12.69 A (180s)
• Max Continuous Power: 626.3 W (180s)
• Power Density: 2.26 W/g (Rated), 4.84 W/g (Maximum)
• Motor Diameter: Ø 107 mm
• Motor Length: 23 mm
• Stick Out Shaft Diameter: Ø 0 mm
• Stator Poles: 36S
• Magnetic Poles: 40P
• Bearings: Single 61803- 2z Sealed
• Inductance per phase (Winding Inductance): 0.182 (≈0.03) mH
• Resistance per phase (Rph): 0.183 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 23 mm, depth: 7.5 mm
• Compatible Propeller Size: 30" to 32"
• Propeller Mount Pattern: 4 × M4 @ PCD Ø 32 mm, depth: 8 mm

Test Data - 90 KV

30 x 10.5 CF_FX

Test Conditions:

• ESC: 60A 12S
• Battery: 2 X HWB - 22000 mAh 6S
• Test Date: 03-01-2026
• Environmental Temp: 29°C
• Humidity: 45%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.93	2.14	1407	1306	0.562	106.9	12.2	90°C (@70% 10 min Constant)
1400	40	49.85	3.74	1703	1967	0.837	186.4	10.6	90°C (@70% 10 min Constant)
1500	50	49.72	6.02	2006	2753	1.153	299.3	9.2	90°C (@70% 10 min Constant)
1600	60	49.54	9.26	2304	3642	1.515	458.7	7.9	90°C (@70% 10 min Constant)
1700	70	49.35	12.69	2542	4489	1.864	626.3	7.2	90°C (@70% 10 min Constant)
1800	80	49.14	16.69	2774	5500	2.210	820.2	6.7	121°C (Maximum)
1900	90	48.91	21.42	2974	6465	2.589	1047.7	6.2	121°C (Maximum)
1950	95	48.8	23.76	3083	6865	2.737	1159.5	5.9	121°C (Maximum)
2000	100	48.62	27.62	3229	7500	2.994	1342.9	5.6	121°C (Maximum)

Performance Summary:

• Best Efficiency: 30×10.5 CF_FX @ 30% throttle (12.2 g/W, 1,306g thrust)
• Maximum Thrust: 30×10.5 CF_FX @ 100% throttle (7,500g thrust, 5.6 g/W)
• Balanced Performance: 30×10.5 CF_FX @ 50% throttle (9.2 g/W, 2,753g thrust)
• Operating Temperature: 90-121°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 90 KV

• Long-endurance aerial photography
• Surveillance mapping missions
• Battery life-critical applications
• Ultra-light drones requiring high efficiency

Common Resources

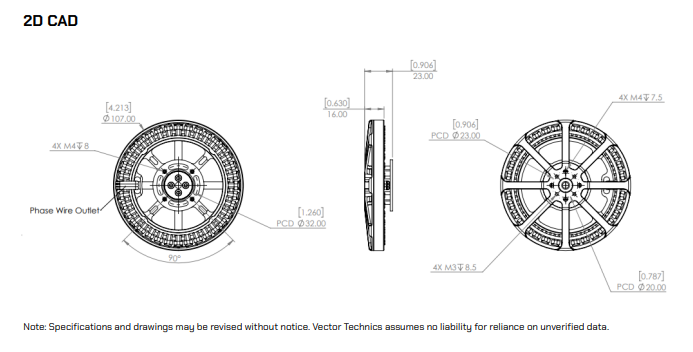

2D CAD Drawing

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 10005 SL motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 23 mm, depth: 7.5 mm
• Propeller Mount Pattern: 4 × M4 @ PCD Ø 32 mm, depth: 8 mm
• Motor Diameter: Ø 107 mm
• Motor Length: 23 mm
• Stick Out Shaft Diameter: Ø 0 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
40A	General purpose	Standard BLHeli_32
60A	High performance	Advanced telemetry
80A+	Heavy lift	Enhanced cooling

ESC Requirements:

• Continuous rating: 40A minimum (60A recommended)
• Voltage support: 12S (44-50V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
30×10.5 CF_FX	High	Maximum thrust & efficiency	Excellent

Propeller Selection Guidelines:

• Use 30×10.5 CF_FX for maximum efficiency and thrust applications
• Always balance propellers before installation
• Carbon fiber recommended for high performance
• Ensure adequate propeller clearance

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 10005 SL 90KV
   • Propeller: 30×10.5 CF_FX
   • ESC: 40A FOC
   • Battery: 12S 22000mAh
   • Expected Performance: 4,489g thrust, long runtime

2. Performance Build (General purpose)

   • Motor: 10005 SL 90KV
   • Propeller: 30×10.5 CF_FX
   • ESC: 60A FOC
   • Battery: 12S 22000mAh
   • Expected Performance: 7,500g thrust, standard runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M4 bolts)
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>121°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Single 61803- 2z Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 121°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S LiPo batteries (44-50V range)
• Do not exceed maximum continuous current (12.69A @ 180s)
• Ensure proper battery discharge rates (C-rating)

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt depth (7.5mm for motor mount and 8mm for propeller mount)
• Verify rotation direction before propeller installation
• Maintain adequate clearance to frame
• Use proper size mounting hardware (M4)

Emergency Procedures:

• If motor overheats (>121°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• Super Light Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: August 2026
• Product Code: VT-10005SL-90KV
• Document ID: VT-DOC-10005SL-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
