8008 SL Motor

The 8008 SL motor is available in three KV configurations to suit different performance requirements. Select your variant below to view specific specifications and test data.

Key Features:

• High thrust up to 7,491g for heavy-lift UAVs
• Durable dual 619/8-2Z sealed bearings for long life
• Optimized for 26"–30" propellers depending on KV variant
• Lightweight design (~210g) for efficient flight
• Multiple KV options (90 KV, 110 KV, 230 KV) for diverse applications

90 KV

90 KV - Specifications

Motor Specifications:

• KV Rating: 90 RPM/V
• Kt (Motor Torque Constant): 0.139 Nm/A @ 2621 RPM
• Weight: 210g ± 5g
• Max Thrust: 7,491g (with TM 30×10.5 prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (48@V): 2A (48@V)
• Max Continuous Current: 20A (180s)
• Max Continuous Power: 966W (180s)
• Power Density: 4.01 W/g (Rated), 5.69 W/g (Maximum)
• Motor Diameter: Ø 88.4 mm
• Motor Length: 26 mm
• Stick Out Shaft Diameter: Ø 0 mm
• Stator Poles: 36S
• Magnetic Poles: 42P
• Bearings: Dual 619 /8-2Z Sealed
• Inductance per phase (Winding Inductance): 0.17 (≈0.03) mH
• Resistance per phase (Rph): 0.22 (≈0.03) Ω
• Mount Pattern @ 90 deg: 4 × M3 @ PCD Ø 30 mm, depth: 5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, 4 × M4 @ PCD Ø 23 mm, depth: 5 mm
• Compatible Propeller Size: 28" to 30"

Test Data - 90 KV

TM 30 x 10.5 CF_FX

Test Conditions:

• ESC: TM 60A 12S
• Battery: 2 x TB - 22000 mAh 12S
• Test Date: 09-10-2024
• Environmental Temp: 28°C
• Humidity: 42%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	50.1	0.9	1039	885	0.34	45.2	19.6	76°C (@70% 10 min Constant)
1400	40	50	2.3	1418	1658	0.62	115.2	14.4	76°C (@70% 10 min Constant)
1500	50	49.9	4.9	1823	2806	1.02	243.5	11.5	76°C (@70% 10 min Constant)
1600	60	49.7	8.6	2195	3994	1.42	426.6	9.4	76°C (@70% 10 min Constant)
1700	70	49.5	13.0	2481	5218	1.83	639.6	8.2	76°C (@70% 10 min Constant)
1800	80	49.2	18.1	2714	6206	2.17	883.3	7.0	81°C (Maximum)
1900	90	48.9	24.2	2929	7105	2.52	1171.3	6.1	81°C (Maximum)
1950	95	48.7	26.6	2990	7491	2.64	1282.1	5.8	81°C (Maximum)
2000	100	48.7	26.6	2984	7407	2.63	1282.1	5.8	81°C (Maximum)

Performance Summary:

• Best Efficiency: TM 30×10.5 @ 30% throttle (19.6 g/W, 885g thrust)
• Maximum Thrust: TM 30×10.5 @ 95% throttle (7,491g thrust, 5.8 g/W)
• Balanced Performance: TM 30×10.5 @ 70% throttle (5,218g thrust, 8.2 g/W)
• Operating Temperature: 76-81°C depending on load
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 90 KV

• Large commercial UAVs
• Heavy-lift applications
• Long-endurance missions
• Efficiency-focused operations

110 KV

110 KV - Specifications

Motor Specifications:

• KV Rating: 110 RPM/V
• Kt (Motor Torque Constant): 0.118 Nm/A @ 2973 RPM
• Weight: 210g ± 5g
• Max Thrust: 7,135g (with TM 28×9.2 prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (48@V): 2A (48@V)
• Max Continuous Current: 14A (180s)
• Max Continuous Power: 666W (180s)
• Power Density: 3.8 W/g (Rated), 5.2 W/g (Maximum)
• Motor Diameter: Ø 88.4 mm
• Motor Length: 26 mm
• Stick Out Shaft Diameter: Ø 0 mm
• Stator Poles: 36S
• Magnetic Poles: 42P
• Bearings: Dual 619 /8-2Z Sealed
• Inductance per phase (Winding Inductance): 0.129 (≈0.03) mH
• Resistance per phase (Rph): 0.2 (≈0.03) Ω
• Mount Pattern @ 90 deg: 4 × M3 @ PCD Ø 30 mm, depth: 5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, 4 × M4 @ PCD Ø 23 mm, depth: 5 mm
• Compatible Propeller Size: 26" to 28"

Test Data - 110 KV

TM 26 x 8.5 CF_FX

Test Conditions:

• ESC: TM 60A 12S
• Battery: 2 x TB - 22000 mAh 12S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	50.1	0.7	1351	475	0.21	35.1	13.5	61°C (@70% 10 min Constant)
1400	40	50	2	1882	1135	0.4	100.0	11.4	61°C (@70% 10 min Constant)
1500	50	49.9	4.4	2428	2194	0.7	219.6	10.0	61°C (@70% 10 min Constant)
1600	60	49.7	7.3	2895	3117	0.97	362.8	8.6	61°C (@70% 10 min Constant)
1700	70	49.5	10.7	3299	3930	1.21	529.7	7.4	61°C (@70% 10 min Constant)
1800	80	49.2	15.6	3681	5007	1.53	767.5	6.5	63°C (Maximum)
1900	90	48.9	21.4	4037	6079	1.83	1046.5	5.8	63°C (Maximum)
1950	95	48.7	23.9	4133	6476	1.95	1163.9	5.6	63°C (Maximum)
2000	100	48.7	24.1	4116	6487	1.97	1173.7	5.5	63°C (Maximum)

NM 26 CF_FX

Test Conditions:

• ESC: TM 60A 12S
• Battery: 2 x TB - 22000 mAh 12S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	50.1	0.8	1327	561	0.22	40.1	14.0	65°C (@70% 10 min Constant)
1400	40	50	2.2	1836	1274	0.44	110.0	11.6	65°C (@70% 10 min Constant)
1500	50	49.9	4.7	2393	2368	0.73	234.5	10.1	65°C (@70% 10 min Constant)
1600	60	49.7	8	2833	3465	1.02	397.6	8.7	65°C (@70% 10 min Constant)
1700	70	49.4	11.6	3219	4304	1.27	573.0	7.5	65°C (@70% 10 min Constant)
1800	80	49.2	16.3	3619	5336	1.58	802.0	6.7	69°C (Maximum)
1900	90	48.8	22.4	3951	6265	1.86	1093.1	5.7	69°C (Maximum)
1950	95	48.7	24.9	4056	6569	1.98	1212.6	5.4	69°C (Maximum)
2000	100	48.7	25.0	4044	6604	2.01	1217.5	5.4	69°C (Maximum)

TM 28 x 9.2 CF_FX (Propeller Not Recommended)

Test Conditions:

• ESC: TM 60A 12S
• Battery: 2 x TB - 22000 mAh 12S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	50.1	0.9	1304	743	0.27	45.1	16.5	78°C + (@70% 10 min Constant)
1400	40	50	2.3	1778	1428	0.49	115.0	12.4	78°C + (@70% 10 min Constant)
1500	50	49.8	5.2	2318	2589	0.83	259.0	10.0	78°C + (@70% 10 min Constant)
1600	60	49.6	8.8	2757	3619	1.15	436.5	8.3	78°C + (@70% 10 min Constant)
1700	70	49.3	13	3108	4657	1.46	640.9	7.3	78°C + (@70% 10 min Constant)
1800	80	49	18.5	3430	5693	1.77	906.5	6.3	84°C + (Maximum)
1900	90	48.6	25.4	3689	6773	2.1	1234.4	5.5	84°C + (Maximum)
1950	95	48.4	27.9	3763	7135	2.21	1350.4	5.3	84°C + (Maximum)
2000	100	48.4	27.7	3764	7091	2.19	1340.7	5.3	84°C + (Maximum)

Performance Summary:

• Best Efficiency: TM 28×9.2 @ 30% throttle (16.5 g/W, 743g thrust)
• Maximum Thrust: TM 28×9.2 @ 95% throttle (7,135g thrust, 5.3 g/W)
• Balanced Performance: TM 28×9.2 @ 70% throttle (4,657g thrust, 7.3 g/W)
• Operating Temperature: 61-84°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 110 KV

• Medium-large commercial UAVs
• Balanced performance missions
• Standard heavy-lift applications
• General purpose operations

230 KV

230 KV - Specifications

Motor Specifications:

• KV Rating: 230 RPM/V
• Kt (Motor Torque Constant): 0.0457 Nm/A @ 2623 RPM
• Weight: 210g ± 5g
• Max Thrust: 6,831g (with TM 30×10.5 prop)
• Voltage Range: 22V – 25V (6S LiPo)
• Io (24@V): 6A (24@V)
• Max Continuous Current: 34A (180s)
• Max Continuous Power: 780W (180s)
• Power Density: 3.71 W/g (Rated), 6.38 W/g (Maximum)
• Motor Diameter: Ø 88.4 mm
• Motor Length: 26 mm
• Stick Out Shaft Diameter: Ø 0 mm
• Stator Poles: 36S
• Magnetic Poles: 42P
• Bearings: Dual 619 /8-2Z Sealed
• Inductance per phase (Winding Inductance): 0.033 (≈0.03) mH
• Resistance per phase (Rph): 0.05 (≈0.03) Ω
• Mount Pattern @ 90 deg: 4 × M3 @ PCD Ø 30 mm, depth: 5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, 4 × M4 @ PCD Ø 23 mm, depth: 5 mm
• Compatible Propeller Size: 26" to 28"

Test Data - 230 KV

TM 28 x 8.4 CF_FX

Test Conditions:

• ESC: HW 80A 6S
• Battery: TB - 22000 mAh 6S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	24.9	2.1	1149	578	0.21	52.3	11.1	56°C (@70% 10 min Constant)
1400	40	24.7	5.1	1620	1172	0.4	126.0	9.3	56°C (@70% 10 min Constant)
1500	50	24.5	10.5	2130	2125	0.7	257.3	8.3	56°C (@70% 10 min Constant)
1600	60	24.2	17.4	2535	3085	0.99	421.1	7.3	56°C (@70% 10 min Constant)
1700	70	23.9	25.4	2878	3988	1.26	607.1	6.6	56°C (@70% 10 min Constant)
1800	80	23.5	35.2	3145	4934	1.55	827.2	6.0	60°C (Maximum)
1900	90	23.1	45.3	3405	5568	1.78	1046.4	5.3	60°C (Maximum)
1950	95	22.9	49.9	3468	6066	1.89	1142.7	5.3	60°C (Maximum)
2000	100	22.9	49.5	3473	5993	1.87	1133.6	5.3	60°C (Maximum)

TM 30 x 10.5 CF_FX

Test Conditions:

• ESC: HW 80A 6S
• Battery: TB - 22000 mAh 6S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	24.5	2.7	1065	898	0.33	66.2	13.6	55°C (@70% 10 min Constant)
1400	40	24.4	7.5	1539	1863	0.68	183.0	10.2	55°C (@70% 10 min Constant)
1500	50	24.1	15	1950	2985	1.09	361.5	8.3	55°C (@70% 10 min Constant)
1600	60	23.7	23.4	2232	4038	1.45	554.6	7.3	55°C (@70% 10 min Constant)
1700	70	23.3	33.5	2475	4967	1.77	780.6	6.4	55°C (@70% 10 min Constant)
1800	80	22.7	43.7	2623	5696	2	992.0	5.7	59°C (Maximum)
1900	90	22.2	56.4	2787	6430	2.26	1252.1	5.1	59°C (Maximum)
1950	95	22.1	61.1	2836	6831	2.35	1350.3	5.1	59°C (Maximum)
2000	100	22.1	60.7	2836	6817	2.32	1341.5	5.1	59°C (Maximum)

Performance Summary:

• Best Efficiency: TM 30×10.5 @ 30% throttle (13.6 g/W, 898g thrust)
• Maximum Thrust: TM 30×10.5 @ 95% throttle (6,831g thrust, 5.1 g/W)
• Balanced Performance: TM 30×10.5 @ 70% throttle (4,967g thrust, 6.4 g/W)
• Operating Temperature: 55-60°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 230 KV

• High-speed applications
• Racing configurations
• Maximum thrust requirements
• Aggressive flight profiles

Common Resources

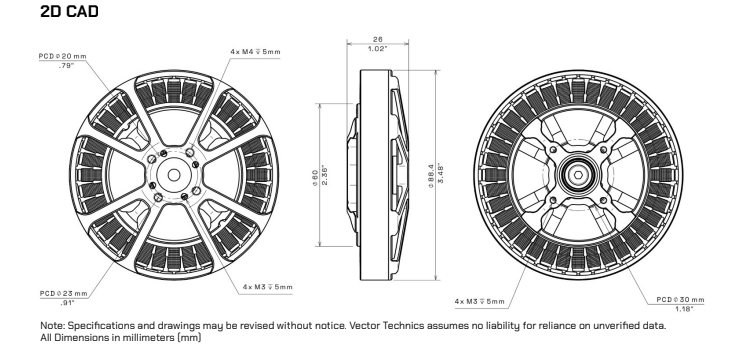

2D CAD Drawing

The 2D CAD drawing is identical for all KV variants (90KV, 110KV, 230KV) as they share the same physical dimensions and mounting pattern.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M3 @ PCD Ø 30 mm (1.18"), depth: 5 mm (0.2")
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm (0.79"), 4 × M4 @ PCD Ø 23 mm (0.91"), depth: 5 mm (0.2")
• Motor Diameter: Ø 88.4 mm (3.48")
• Motor Length: 26 mm (1.02")
• Stick Out Shaft Diameter: Ø 0 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
60-80A	General purpose	Standard FOC control
80-100A	High performance	Advanced telemetry
100A+	Heavy lift	Enhanced cooling

ESC Requirements:

• Continuous rating: 60A minimum (80A recommended)
• Voltage support: 12S (44-52V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support, FOC control

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Recommended Propeller Configurations:

Propeller Size	Application	Performance
28"	Efficiency	Best efficiency
29"	Balanced	Good balance
30"	Maximum thrust	Highest thrust

Propeller Selection Guidelines:

• Start with 28" for balanced performance and efficiency
• Use 29" for general purpose applications
• Use 30" for maximum thrust output
• Always balance propellers before installation
• Consider blade material: Carbon fiber recommended for high performance

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 8008 SL 90KV
   • Propeller: 28"
   • ESC: 60-80A FOC
   • Battery: 12S 10000mAh
   • Expected Performance: TBD (testing in progress)

2. Balanced Build (General purpose)

   • Motor: 8008 SL 110KV
   • Propeller: 29"
   • ESC: 80A FOC
   • Battery: 12S 8000mAh
   • Expected Performance: TBD (testing in progress)

3. Performance Build (Maximum thrust)

   • Motor: 8008 SL 230KV
   • Propeller: 30"
   • ESC: 100A FOC
   • Battery: 12S 6000mAh
   • Expected Performance: TBD (testing in progress)

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>80°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Dual 619/8-2Z Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Comparison with Similar Motors

SL Series Comparison

Feature	4006 SL	8008 SL	8015 SL
Weight	67 g	210 g	420 g
Max Thrust	~2 kg	~10 kg (est.)	13.5 kg
Voltage	24V (6S)	48V (12S)	48V (12S)
Prop Size	13–16"	28–30"	up to 30"
Application	Small UAVs	Medium UAVs	Large UAVs
Mounting	M3 bolts	M3 bolts	M4 bolts

PRO Series Alternatives

Feature	8008 SL	6020 PRO	8020 PRO
Weight	210 g	~300 g	~400 g
Max Thrust	~10 kg (est.)	~8 kg	~12 kg
Voltage	48V (12S)	24-48V (6S-12S)	24-48V (6S-12S)
Prop Size	28–30"	22–26"	24–28"
Build	Lightweight	Standard	Heavy-duty
Power Density	5.69 W/g (90KV)	~4.5 W/g	~5.0 W/g

Selection Guide:

• 8008 SL: Best for medium UAVs requiring efficient operation
• 6020 PRO: More robust construction for demanding applications
• 8020 PRO: Higher thrust capacity for heavy-lift missions
• 8015 SL: Step up for larger UAVs

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 80°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S LiPo batteries (44-52V range)
• Do not exceed maximum continuous current ratings
• Ensure proper battery discharge rates (C-rating)

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt length specifications
• Verify rotation direction before propeller installation
• Maintain minimum clearance to frame

Emergency Procedures:

• If motor overheats (>80°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• SuperLight Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: February 2026
• Product Codes: VT-8008SL-90KV, VT-8008SL-110KV, VT-8008SL-230KV
• Document ID: VT-DOC-8008SL-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm). Testing data for 110KV and 230KV variants will be added upon completion of performance testing.
