6020 PRO Motor

The 6020 PRO motor is a high-performance brushless motor designed for large UAV applications. This documentation covers the 180 KV variant with detailed specifications and test data.

Key Features:

• High thrust up to 13,902g for ultra-heavy-lift UAVs
• Lightweight design (425g ± 5g) for efficient large UAV operation
• Single 180 KV variant optimized for low-RPM, high-thrust performance
• Compatible with 22"–26" propellers for diverse mission profiles
• Durable triple 626-2Z sealed bearings for long operational life
• High power density (up to 6.86 W/g maximum)
• Optimized for heavy payloads, long-endurance missions, and industrial applications
• Operating temperature range: 61–90°C depending on load and propeller

180 KV

180 KV - Specifications

Motor Specifications:

• KV Rating: 180 RPM/V
• Kt (Motor Torque Constant): 0.068 Nm/A @ 5291 RPM
• Weight: 425g ± 5g
• Max Thrust: 13,902g (with TM 26×7.8 prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (No Load Current @ 48V): 2.5A
• Max Continuous Current: 47A (180s)
• Max Continuous Power: 2209W (180s)
• Power Density: 3.53 W/g (Rated), 6.86 W/g (Maximum)
• Motor Diameter: Ø 4.8 mm
• Motor Length: 42 mm
• Shaft Diameter: Ø 6 mm
• Stator Poles: 24S
• Magnetic Poles: 28P
• Bearings: Triple 626-2Z Sealed
• Inductance per phase (Winding Inductance): 0.046 mH (≈0.03)
• Resistance per phase (Rph): 0.05 Ω (≈0.03)
• Motor Mount Pattern @ 90°: 4 × M3 @ PCD Ø 20 mm, depth: 6 mm
• Compatible Propeller Size: 22" to 26"
• Propeller Mount Pattern: 8 × M3 @ PCD Ø 18 mm, Ø 20 mm, depth: 6 mm; 4 × M3 @ PCD Ø 12 mm, depth: 3.8 mm

Test Data - 180 KV

TM 22 x 6.6 CF_FX Propeller

Test Conditions:

• ESC: HW 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 21-03-2024
• Environmental Temp: 37°C
• Humidity: 24%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	50.0	2.08	1492	381	0.10	104.0	3.7	61°C (@70% 10 min Constant)
1400	40	50.0	3.17	2291	920	0.23	158.5	5.8	61°C (@70% 10 min Constant)
1500	50	49.8	6.4	3402	2117	0.53	318.7	6.6	61°C (@70% 10 min Constant)
1600	60	49.5	12.87	4514	3940	0.97	637.1	6.2	61°C (@70% 10 min Constant)
1700	70	49.2	18.55	5141	5174	1.28	912.7	5.7	61°C (@70% 10 min Constant)
1800	80	48.8	25.58	5680	6632	1.62	1248.3	5.3	64°C (Maximum)
1900	90	48.1	39.57	6584	8737	2.14	1903.3	4.6	64°C (Maximum)
1950	95	47.9	44.69	6834	9425	2.34	2140.7	4.4	64°C (Maximum)
2000	100	47.6	50.23	7081	10131	2.55	2390.9	4.2	64°C (Maximum)

TM 22 x 7.4 CF_FX Propeller

Test Conditions:

• ESC: HW 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 21-03-2024
• Environmental Temp: 37°C
• Humidity: 24%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.7	2.0	2189	894	0.27	99.4	9.0	62°C (@70% 10 min Constant)
1400	40	49.5	4.8	3090	1907	0.55	237.6	8.0	62°C (@70% 10 min Constant)
1500	50	49.2	10.0	3993	3396	0.94	492.0	6.9	62°C (@70% 10 min Constant)
1600	60	48.8	17.0	4747	5084	1.36	829.6	6.1	62°C (@70% 10 min Constant)
1700	70	48.2	25.9	5428	6706	1.80	1248.4	5.4	62°C (@70% 10 min Constant)
1800	80	47.5	38.7	6113	8738	2.32	1838.3	4.8	66°C (Maximum)
1900	90	46.7	52.8	6669	10586	2.82	2465.8	4.3	66°C (Maximum)
1950	95	46.3	58.5	6861	11283	3.00	2708.6	4.2	66°C (Maximum)
2000	100	46.3	58.8	6848	11295	3.03	2722.4	4.1	66°C (Maximum)

VT 2408 CFRP_FP Propeller

Test Conditions:

• ESC: TM 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 05-03-2025
• Environmental Temp: 32°C
• Humidity: 19%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.7	1.5	1714	882	0.31	74.6	11.8	72°C (@70% 10 min Constant)
1400	40	49.4	4.6	2542	2063	0.67	227.2	9.1	72°C (@70% 10 min Constant)
1500	50	49.0	11.1	3428	3830	1.24	543.9	7.0	72°C (@70% 10 min Constant)
1600	60	48.4	21.2	4207	6044	1.88	1026.1	5.9	72°C (@70% 10 min Constant)
1700	70	47.7	33.4	4839	8126	2.49	1593.2	5.1	72°C (@70% 10 min Constant)
1800	80	46.8	48.1	5368	10204	3.13	2251.1	4.5	80°C (Maximum)
1900	90	45.6	67.8	5839	12141	3.77	3091.7	3.9	80°C (Maximum)
1950	95	45.0	78.8	6055	12939	4.04	3546.0	3.6	80°C (Maximum)
2000	100	44.7	84.4	6155	13355	4.16	3772.7	3.5	80°C (Maximum)

TM 24 x 7.2 CF_FX Propeller

Test Conditions:

• ESC: HW 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 21-03-2024
• Environmental Temp: 37°C
• Humidity: 24%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.4	0.79	1417	504	0.14	39.0	12.9	67°C (@70% 10 min Constant)
1400	40	49.3	2.25	2157	1236	0.34	110.9	11.1	67°C (@70% 10 min Constant)
1500	50	49.1	6.83	3228	2890	0.77	335.4	8.6	67°C (@70% 10 min Constant)
1600	60	48.6	16.21	4297	5239	1.40	787.8	6.7	67°C (@70% 10 min Constant)
1700	70	48.3	22.79	4775	6580	1.75	1100.8	6.0	67°C (@70% 10 min Constant)
1800	80	47.8	31.44	5291	8059	2.14	1502.8	5.4	71°C (Maximum)
1900	90	46.9	49.69	6066	10572	2.81	2330.5	4.5	71°C (Maximum)
1950	95	46.6	56.54	6276	11367	3.05	2634.8	4.3	71°C (Maximum)
2000	100	46.3	63.04	6478	12086	3.24	2918.8	4.1	71°C (Maximum)

HW 2480 CFRP_FP Propeller

Test Conditions:

• ESC: TM 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 05-03-2025
• Environmental Temp: 32°C
• Humidity: 19%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.6	1.6	1731	957	0.32	79.4	12.1	62°C (@70% 10 min Constant)
1400	40	49.6	4.7	2535	2147	0.68	232.2	9.2	62°C (@70% 10 min Constant)
1500	50	49.0	11.3	3440	4043	1.26	553.7	7.3	62°C (@70% 10 min Constant)
1600	60	48.4	21.1	4218	6175	1.88	1021.2	6.0	62°C (@70% 10 min Constant)
1700	70	47.6	33.3	4852	8223	2.49	1585.1	5.2	62°C (@70% 10 min Constant)
1800	80	46.7	47.1	5389	10196	3.05	2199.6	4.6	66°C (Maximum)
1900	90	45.7	64.9	5902	12110	3.62	2965.9	4.1	66°C (Maximum)
1950	95	45.1	74.8	6126	13013	3.90	3373.5	3.9	66°C (Maximum)
2000	100	44.8	80.0	6236	13466	4.04	3584.0	3.8	66°C (Maximum)

SR 24 x 7.2 CF_FX Propeller

Test Conditions:

• ESC: HW 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 19-10-2023
• Environmental Temp: 32°C
• Humidity: 49%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.5	3.8	2506	1954	0.57	188.1	10.4	78°C (@70% 10 min Constant)
1400	40	49.4	6.2	2976	2751	0.80	306.3	9.0	78°C (@70% 10 min Constant)
1500	50	48.9	13.1	3838	4628	1.30	640.6	7.2	78°C (@70% 10 min Constant)
1600	60	48.4	22.3	4535	6553	1.84	1079.3	6.1	78°C (@70% 10 min Constant)
1700	70	47.7	33.1	5135	8454	2.34	1578.9	5.4	78°C (@70% 10 min Constant)
1800	80	46.9	46.9	5733	10257	2.83	2199.6	4.7	85°C (Maximum)
1900	90	45.9	64.1	6211	12155	3.40	2942.2	4.1	85°C (Maximum)
1950	95	45.6	70.5	6367	12729	3.59	3214.8	4.0	85°C (Maximum)
2000	100	45.6	70.6	6356	12667	3.59	3219.4	3.9	85°C (Maximum)

SR 24 x 7.8 CF_FX Propeller

Test Conditions:

• ESC: HW 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 19-10-2023
• Environmental Temp: 32°C
• Humidity: 49%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.4	2.5	2072	1354	0.41	123.5	11.0	81°C (@70% 10 min Constant)
1400	40	49.1	6.6	2919	2777	0.82	324.1	8.6	81°C (@70% 10 min Constant)
1500	50	48.7	13.7	3763	4647	1.35	667.2	7.0	81°C (@70% 10 min Constant)
1600	60	48.1	23.5	4467	6567	1.91	1130.4	5.8	81°C (@70% 10 min Constant)
1700	70	47.4	34.6	5037	8383	2.42	1640.0	5.1	81°C (@70% 10 min Constant)
1800	80	46.6	48.8	5600	10209	2.93	2274.1	4.5	90°C (Maximum)
1900	90	45.6	65.6	6080	11907	3.42	2991.4	4.0	90°C (Maximum)
1950	95	45.2	73.1	6215	12613	3.64	3304.1	3.8	90°C (Maximum)
2000	100	45.1	73.3	6199	12675	3.65	3305.8	3.8	90°C (Maximum)

TM 26 x 7.8 CF_FX Propeller

Test Conditions:

• ESC: HW 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 21-03-2024
• Environmental Temp: 37°C
• Humidity: 24%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.7	1.03	1354	825	0.22	51.2	16.1	71°C (@70% 10 min Constant)
1400	40	49.6	2.99	2049	1776	0.50	148.3	12.0	71°C (@70% 10 min Constant)
1500	50	49.3	9.75	3100	4006	1.15	480.7	8.3	71°C (@70% 10 min Constant)
1600	60	49.0	22.22	4031	6852	2.02	1088.8	6.3	71°C (@70% 10 min Constant)
1700	70	48.3	32.03	4456	8416	2.47	1547.0	5.4	71°C (@70% 10 min Constant)
1800	80	47.9	44.8	4922	10273	3.03	2145.9	4.8	78°C (Maximum)
1900	90	46.8	69.26	5483	12867	3.82	3241.4	4.0	78°C (Maximum)
1950	95	46.3	78.02	5610	13508	4.05	3612.3	3.7	78°C (Maximum)
2000	100	45.9	85.51	5696	13902	4.16	3924.9	3.5	78°C (Maximum)

Performance Summary:

• Best Efficiency: TM 26×7.8 CF_FX @ 30% throttle (16.1 g/W, 825g thrust)
• Maximum Thrust: TM 26×7.8 CF_FX @ 100% throttle (13,902g thrust, 3.5 g/W)
• Balanced Performance: TM 24×7.2 CF_FX @ 30% throttle (12.9 g/W, 504g thrust)
• Operating Temperature: 61-90°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 180 KV

• Very large commercial UAVs
• Heavy payload applications (up to 14kg)
• Long-endurance missions
• Professional cinematography and surveying
• Industrial applications

Common Resources

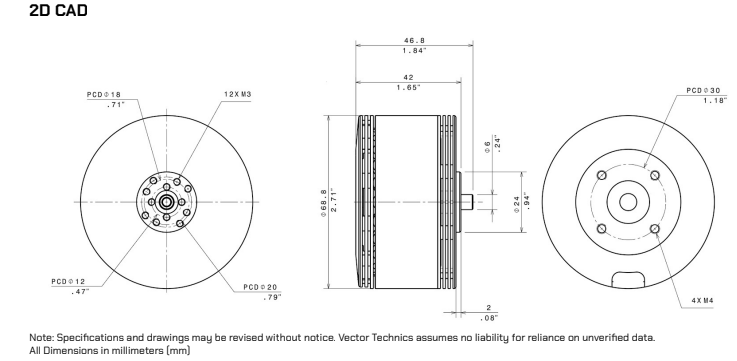

2D CAD Drawing

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 6020 PRO motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M3 @ PCD Ø 20 mm, depth: 6 mm
• Propeller Mount Pattern (Inner): 4 × M3 @ PCD Ø 12 mm, depth: 3.8 mm
• Propeller Mount Pattern (Outer): 8 × M3 @ PCD Ø 18 mm, Ø 20 mm, depth: 6 mm
• Motor Diameter: Ø 4.8 mm
• Motor Length: 42 mm
• Stick Out Shaft Diameter: Ø 6 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
80A	General purpose	Standard FOC
100A	High performance	Advanced telemetry, FOC
120A+	Heavy lift	Enhanced cooling, FOC, high current

ESC Requirements:

• Continuous rating: 80A minimum (100A recommended)
• Voltage support: 12S (44-50V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support, FOC capability mandatory

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
TM 26×7.8	High	Maximum thrust & efficiency	Excellent
HW 2480	High	Balanced thrust	Very Good
TM 24×7.2	Medium-High	General purpose	Good
TM 22×7.4	Medium	Efficiency	Very Good

Propeller Selection Guidelines:

• Start with TM 26×7.8 for best efficiency and maximum thrust
• Use HW 2480 for balanced performance applications
• Always balance propellers before installation
• Carbon fiber recommended for high performance
• Ensure adequate propeller clearance (minimum 20mm)

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 6020 PRO 180KV
   • Propeller: TM 26×7.8 CF_FX
   • ESC: 80A FOC
   • Battery: 12S 16000mAh
   • Expected Performance: 6,852g thrust, 400+ seconds runtime

2. Balanced Build (General purpose)

   • Motor: 6020 PRO 180KV
   • Propeller: HW 2480 CFRP_FP
   • ESC: 100A FOC
   • Battery: 12S 12000mAh
   • Expected Performance: 8,223g thrust, 300-400 seconds runtime

3. Performance Build (Maximum thrust)

   • Motor: 6020 PRO 180KV
   • Propeller: TM 26×7.8 CF_FX
   • ESC: 120A FOC
   • Battery: 12S 10000mAh
   • Expected Performance: 13,902g thrust, 240 seconds runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M3 bolts)
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>80°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Triple 626-2Z Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Comparison with Similar Motors

PRO Series Comparison

Feature	6020 PRO	6015 PRO	6010 PRO
Weight	425 g	380 g	240 g
Max Thrust	13,902g (180KV)	10,268g (170KV)	6,778g (160KV)
Voltage	48V (12S)	48V (12S)	48V (12S)
Prop Size	22-26"	22-24"	20-23"
Application	Very Large UAVs	Large UAVs	Large UAVs
Mounting	M3 bolts	M4 bolts	M3/M4 bolts
Power Density	6.86 W/g	7.02 W/g	7.13 W/g

Selection Guide:

• 6020 PRO: Best for very large UAVs requiring 14kg thrust capacity
• 6015 PRO: Lower thrust option for large UAVs
• 6010 PRO: Medium-thrust capacity for large UAVs

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 90°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S LiPo batteries (44-50V range)
• Do not exceed maximum continuous current (47A @ 180s)
• Ensure proper battery discharge rates (C-rating)
• Use ESCs rated for 12S operation with FOC capability

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt depth (6mm for motor mount, 3.8mm/6mm for propeller mount)
• Verify rotation direction before propeller installation
• Maintain minimum 20mm clearance to frame
• Use proper size mounting hardware (M3 for motor and propeller)
• Ensure triple bearing configuration is properly seated

Emergency Procedures:

• If motor overheats (>90°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• PRO Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: February 2026
• Product Code: VT-6020PRO-180KV
• Document ID: VT-DOC-6020PRO-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
