14015 PRO Motor

The 14015 PRO motor is a high-performance brushless motor designed for very large UAV and heavy-lift applications. This documentation covers the 80 KV variant with detailed specifications and test data.

Key Features:

• High thrust up to 29,200g for very large UAVs
• Dual 61904/2RZ sealed bearings for long-life operation
• Optimized for propellers up to 48"
• Heavy-duty construction (~1.65kg) for extreme lift performance
• High power density (up to 3.07 W/g maximum)
• Designed for professional industrial and heavy-lift drone applications

80 KV

80 KV - Specifications

Motor Specifications:

• KV Rating: 80 RPM/V
• Kt (Motor Torque Constant): 0.185 Nm/A @ 1913 RPM
• Weight: 1650g ± 2%
• Max Thrust: 29,200g (with TM 47×18 prop)
• Voltage Range: 48V – 72V (12S to 24S LiHv)
• Io (No Load Current @ 48V): 7.0A
• Max Continuous Current: 81A (180s)
• Max Continuous Power: 3933W (180s)
• Power Density: 2.25 W/g (Rated), 3.07 W/g (Maximum)
• Motor Diameter: Ø 156 mm
• Motor Length: 49 mm
• Shaft Diameter: Ø 40 mm
• Stator Poles: 36S
• Magnetic Poles: 42P
• Bearings: Dual 61904/2RZ Sealed
• Inductance per phase (Winding Inductance): 0.030 (≈0.03) mH
• Resistance per phase (Rph): 0.03 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M5 @ PCD Ø 50 mm, depth: 12 mm
• Compatible Propeller Size: Up to 48"
• Propeller Mount Pattern: 4 × M4 @ PCD Ø 30 mm, depth: 18 mm

Test Data - 80 KV

TM 47 x 18 CF_FX

Test Conditions:

• ESC: 200 A 12 S - T-motor
• Battery: Power Supply
• Test Date: 10-11-2023
• Environmental Temp: 28°C
• Humidity: 44%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (kg)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.7	4.8	769	1.3	1.40	238.6	5.4	56°C (@70% 10 min Constant)
1400	40	49.6	12.2	1122	4.9	3.71	605.1	8.1	56°C (@70% 10 min Constant)
1500	50	49.4	22.2	1392	8.5	5.53	1096.7	7.8	56°C (@70% 10 min Constant)
1600	60	48.7	38.3	1668	12.4	8.10	1865.2	6.6	56°C (@70% 10 min Constant)
1700	70	47.8	57.7	1908	16.6	10.70	2758.1	6.0	62°C (Maximum)
1800	80	46.3	81.8	2098	21.4	12.91	3787.3	5.7	62°C (Maximum)
1900	90	46.3	104.4	2257	26.2	15.55	4833.7	5.4	62°C (Maximum)
1950	95	45.7	116.8	2316	27.7	16.78	5337.8	5.2	62°C (Maximum)
2000	100	44.5	120.6	2351	29.2	17.47	5366.7	5.4	62°C (Maximum)

TM 40 x 18 CF_FX

Test Conditions:

• ESC: TM 200A 14S
• Battery: XX - 00000 mAh 0S
• Test Date: 04-08-2025
• Environmental Temp: 28°C
• Humidity: 50%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	57.3	6.8	1207	3129	1.49	387.7	8.1	55°C (@70% 10 min Constant)
1400	40	57.6	12.4	1588	597	2.60	716.2	8.3	55°C (@70% 10 min Constant)
1500	50	57.5	21.5	1969	9335	4.07	1238.3	7.5	55°C (@70% 10 min Constant)
1600	60	56.6	34.4	2358	13788	5.73	1948.1	7.1	55°C (@70% 10 min Constant)
1700	70	55.7	50.4	2676	17253	7.60	2807.6	6.1	61°C (Maximum)
1800	80	54.9	69.0	2974	20028	9.36	3790.4	5.3	61°C (Maximum)
1900	90	53.2	91.1	3238	24464	11.32	4849.8	5.0	61°C (Maximum)
1950	95	53.2	103.9	3372	27579	12.29	5524.6	5.0	61°C (Maximum)
2000	100	53.2	103.5	3375	28040	12.39	5504.9	5.0	61°C (Maximum)

Performance Summary:

• Best Efficiency: TM 40×18 CF_FX @ 40% throttle (8.3 g/W, 597g thrust)
• Maximum Thrust: TM 47×18 CF_FX @ 100% throttle (29.2kg thrust, 5.4 g/W)
• Balanced Performance: TM 40×18 CF_FX @ 30% throttle (8.1 g/W, 3,129g thrust)
• Operating Temperature: 55-62°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 80 KV

• Very large commercial UAVs and heavy-lift platforms
• Agricultural spray drones (up to 29kg payload capacity)
• Industrial heavy-lift applications
• Search and rescue operations
• Long-endurance surveillance with large propellers

Common Resources

2D CAD Drawing

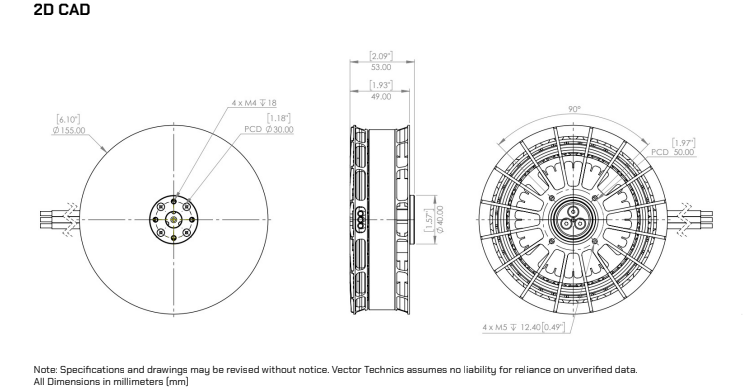

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 14015 PRO motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M5 @ PCD Ø 50 mm, depth: 12 mm
• Propeller Mount Pattern: 4 × M4 @ PCD Ø 30 mm, depth: 18 mm
• Motor Diameter: Ø 156 mm
• Motor Length: 49 mm
• Stick Out Shaft Diameter: Ø 40 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
200A	General purpose	Standard FOC, 12S capable
250A	High performance	Advanced telemetry, FOC, 14S capable
300A+	Heavy lift	Enhanced cooling, FOC, high current, multi-voltage

ESC Requirements:

• Continuous rating: 200A minimum (250A recommended)
• Voltage support: 12S-24S (48-72V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support, FOC capability mandatory

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
TM 47×18 CF_FX	High	Maximum thrust	Excellent
TM 40×18 CF_FX	High	Balanced performance & efficiency	Very Good

Propeller Selection Guidelines:

• Start with TM 40×18 CF_FX for best balance of efficiency and thrust
• Use TM 47×18 CF_FX for maximum thrust applications
• Always balance propellers before installation
• Carbon fiber mandatory for high performance and safety
• Ensure adequate propeller clearance (minimum 50mm)

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 14015 PRO 80KV
   • Propeller: TM 40×18 CF_FX
   • ESC: 200A FOC
   • Battery: 12S 20000mAh
   • Expected Performance: 17,253g thrust, 400+ seconds runtime

2. Balanced Build (General purpose)

   • Motor: 14015 PRO 80KV
   • Propeller: TM 40×18 CF_FX
   • ESC: 250A FOC
   • Battery: 14S 16000mAh
   • Expected Performance: 20,028g thrust, 350-450 seconds runtime

3. Performance Build (Maximum thrust)

   • Motor: 14015 PRO 80KV
   • Propeller: TM 47×18 CF_FX
   • ESC: 300A FOC
   • Battery: 12S 16000mAh
   • Expected Performance: 29,200g thrust, 250 seconds runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M5 bolts)
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)
• Bearing condition check (extra important for heavy-lift)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear, cracks, or damage
• Check shaft alignment

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log
• Thermal imaging inspection (if available)

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>65°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble
• Abnormal electrical readings

Bearing Replacement

Bearing Specifications:

• Type: Dual 61904/2RZ Sealed
• Service Interval: 80-120 flight hours (typical, heavy-lift reduces interval)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature
• Unusual noise during operation

Comparison with Similar Motors

PRO Series Comparison

| Feature | 14015 PRO | 8020 PRO | 8015 PRO | |---------|----------|----------| | Weight | 1650 g | 750 g | 450 g | | Max Thrust | 29,200g (80KV) | 15,971g (120KV) | 13,391g (100KV) | | Voltage | 48-72V (12-24S) | 48V (12S) | 48V (12S) | | Prop Size | Up to 48" | 28-32" | 28-30" | | Application | Heavy Lift UAVs | Very Large UAVs | Very Large UAVs | | Mounting | M5 bolts | M4/M5 bolts | M4 bolts | | Power Density | 3.07 W/g | 5.03 W/g | 6.4 W/g |

Selection Guide:

• 14015 PRO: Best for heavy-lift UAVs with up to 48" propellers, maximum payload capacity (29kg)
• 8020 PRO: High thrust with 28-32" propellers for very large UAVs
• 8015 PRO: Lighter option with excellent efficiency for 28-30" propellers

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 65°C for sustained periods
• Inspect motor bearings regularly for wear (critical for heavy-lift)
• Replace damaged propellers immediately
• Use propeller guards for heavy-lift operations near people

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S-24S LiHv batteries (48-72V range)
• Do not exceed maximum continuous current (81A @ 180s)
• Ensure proper battery discharge rates (C-rating)
• Use ESCs rated for 12-24S operation with FOC capability
• Monitor battery voltage during operation

Installation Safety:

• Follow torque specifications exactly (M5 bolts are critical)
• Never exceed maximum bolt depth (12mm for motor mount, 18mm for propeller mount)
• Verify rotation direction before propeller installation
• Maintain minimum 50mm clearance to frame
• Use proper size mounting hardware (M5 for motor, M4 for propeller)
• Ensure dual bearing configuration is properly seated
• Use high-strength threadlocker on all mounting bolts

Emergency Procedures:

• If motor overheats (>65°C), land immediately
• If unusual vibration occurs, stop operation immediately
• If motor makes grinding sounds, inspect bearings before next flight
• Always have emergency landing plan
• For heavy-lift operations, have redundant safety systems

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• PRO Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations (200A+ required)
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: February 2026
• Product Code: VT-14015PRO-80KV
• Document ID: VT-DOC-14015PRO-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
