6015 PRO Motor

The 6015 PRO motor is a high-performance brushless motor designed for large UAV applications. This documentation covers the 150 KV, 170 KV, and 340 KV variants with detailed specifications and test data.

Key Features:

• High thrust up to 9,980g for heavy-lift UAVs
• Lightweight design (363g - 389g) for large UAV efficiency
• Multiple KV options (150 KV, 170 KV, 340 KV) for diverse applications
• Compatible with 18"–24" propellers depending on KV variant
• Durable triple 626-2Z sealed bearings for long operational life
• High power density (up to 7.02 W/g maximum)
• Optimized for heavy payloads and long-endurance missions

150 KV

150 KV - Specifications

Motor Specifications:

• KV Rating: 150 RPM/V
• Kt (Motor Torque Constant): 0.075 Nm/A @ 4558 RPM
• Weight: 363 g ± 5 g
• Max Thrust: 9,980g (with 2480 CFRP_FX prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (No Load Current @ 48V): 1.6A
• Max Continuous Current: 30A (180s)
• Max Continuous Power: 1415W (180s)
• Power Density: 3.72 W/g (Rated), 4.22 W/g (Maximum)
• Motor Diameter: Ø 68.8 mm
• Motor Length: 39 mm
• Shaft Diameter: Ø 6 mm
• Stator Poles: 24S
• Magnetic Poles: 28P
• Bearings: Triple 626-2Z Sealed
• Inductance per phase (Winding Inductance): 0.091 (≈0.03) mH
• Resistance per phase (Rph): 0.09 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 30 mm, depth: 10 mm
• Compatible Propeller Size: 22" to 24"
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, depth: 8 mm

Test Data - 150 KV

2480 CFRP_FX Propeller

Test Conditions:

• ESC: 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 06-03-2025
• Environmental Temp: 36°C
• Humidity: 12%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.5	1.7	1770	1023	0.34	84.2	12.2	71°C (@70% 10 min Constant)
1400	40	49.3	4.3	2450	2059	0.64	212.0	9.7	71°C (@70% 10 min Constant)
1500	50	49.0	9.3	3198	3598	1.08	455.7	7.9	71°C (@70% 10 min Constant)
1600	60	48.6	15.9	3817	5137	1.52	772.7	6.6	71°C (@70% 10 min Constant)
1700	70	48.1	24.9	4324	6689	2.02	1197.7	5.6	71°C (@70% 10 min Constant)
1800	80	47.5	35.2	4778	8248	2.48	1672.0	4.9	76°C (Maximum)
1900	90	46.8	47.3	5180	9679	2.89	2213.6	4.4	76°C (Maximum)
1950	95	46.6	50.6	5268	9980	2.98	2358.0	4.2	76°C (Maximum)
2000	100	46.6	50.3	5272	9953	2.95	2344.0	4.2	76°C (Maximum)

VT 2408 CFRP_FX Propeller

Test Conditions:

• ESC: 60A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 04-03-2025
• Environmental Temp: 31°C
• Humidity: 46%
• Cross-winds: Moderate

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.4	1.9	2024	1471	0.42	93.9	15.7	59°C (@70% 10 min Constant)
1400	40	49.2	4.7	2697	2476	0.73	231.2	10.7	59°C (@70% 10 min Constant)
1500	50	48.9	9.1	3336	3753	1.11	445.0	8.4	59°C (@70% 10 min Constant)
1600	60	48.4	15.9	3982	5473	1.59	769.6	7.1	59°C (@70% 10 min Constant)
1700	70	47.7	24.9	4540	7215	2.08	1187.7	6.1	59°C (@70% 10 min Constant)
1800	80	46.9	35.5	4991	8687	2.51	1665.0	5.2	63°C (Maximum)
1900	90	46.0	48.4	5340	9794	2.84	2226.4	4.4	63°C (Maximum)
1950	95	45.9	50.3	5373	9797	2.82	2308.8	4.2	63°C (Maximum)
2000	100	45.9	50.1	5333	9619	2.77	2299.6	4.2	63°C (Maximum)

Performance Summary:

• Best Efficiency: VT 2408 CFRP_FX @ 30% throttle (15.7 g/W, 1,471g thrust)
• Maximum Thrust: 2480 CFRP_FX @ 95% throttle (9,980g thrust, 4.2 g/W)
• Balanced Performance: VT 2408 CFRP_FX @ 70% throttle (7,215g thrust, 6.1 g/W)
• Operating Temperature: 59-76°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 150 KV

• Large commercial UAVs
• Heavy payload applications (up to 10kg)
• Long-endurance missions
• Professional cinematography and surveying

170 KV

170 KV - Specifications

Motor Specifications:

• KV Rating: 170 RPM/V
• Kt (Motor Torque Constant): 0.072 Nm/A @ 5184 RPM
• Weight: 363 g ± 5 g
• Max Thrust: 9,446g (with 21×7.3 CF_FX prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (No Load Current @ 48V): 1.9A
• Max Continuous Current: 35A (180s)
• Max Continuous Power: 1634W (180s)
• Power Density: 4.3 W/g (Rated), 7.02 W/g (Maximum)
• Motor Diameter: Ø 68.8 mm
• Motor Length: 39 mm
• Shaft Diameter: Ø 6 mm
• Stator Poles: 24S
• Magnetic Poles: 28P
• Bearings: Triple 626-2Z Sealed
• Inductance per phase (Winding Inductance): 0.079 (≈0.03) mH
• Resistance per phase (Rph): 0.08 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 30 mm, depth: 10 mm
• Compatible Propeller Size: 22" to 24"
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, depth: 8 mm

Test Data - 170 KV

21 x 7.3 CF_FX Propeller

Test Conditions:

• ESC: 60A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 01-11-2023
• Environmental Temp: 28°C
• Humidity: 34%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.3	2.1	2354	1215	0.29	103.5	11.7	56°C (@70% 10 min Constant)
1400	40	49.1	5.2	3221	2247	0.56	255.3	8.8	56°C (@70% 10 min Constant)
1500	50	48.9	9.3	3944	3404	0.86	454.8	7.5	56°C (@70% 10 min Constant)
1600	60	48.6	14.1	4589	4670	1.12	685.3	6.8	56°C (@70% 10 min Constant)
1700	70	48.2	21.0	5167	5750	1.46	1012.2	5.7	56°C (@70% 10 min Constant)
1800	80	47.7	29.1	5719	7135	1.82	1388.1	5.1	60°C (Maximum)
1900	90	47.1	40.3	6217	8564	2.24	1898.1	4.5	60°C (Maximum)
1950	95	46.8	47.7	6518	9446	2.47	2232.4	4.2	60°C (Maximum)
2000	100	46.8	46.5	6557	9187	2.38	2176.2	4.2	60°C (Maximum)

22 x 6.6 CF_FX Propeller

Test Conditions:

• ESC: 60A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 01-11-2023
• Environmental Temp: 28°C
• Humidity: 34%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.9	1.7	2371	1044	0.26	84.8	12.3	60°C (@70% 10 min Constant)
1400	40	49.7	4.1	3230	1993	0.48	203.8	9.8	60°C (@70% 10 min Constant)
1500	50	49.5	7.7	3986	3126	0.74	381.2	8.2	60°C (@70% 10 min Constant)
1600	60	49.2	12.3	4625	4302	1.02	605.2	7.1	60°C (@70% 10 min Constant)
1700	70	48.9	18.1	5250	5458	1.31	885.1	6.2	60°C (@70% 10 min Constant)
1800	80	48.4	25.6	5827	6878	1.64	1239.0	5.6	63°C (Maximum)
1900	90	47.9	35.1	6404	8249	1.99	1681.3	4.9	63°C (Maximum)
1950	95	47.5	41.9	6657	9257	2.25	1990.3	4.7	63°C (Maximum)
2000	100	47.5	41.7	6721	9175	2.23	1980.8	4.6	63°C (Maximum)

VT 2308 CFRP_FP Propeller

Test Conditions:

• ESC: 60A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 20-03-2024
• Environmental Temp: 38°C
• Humidity: 22%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.4	3.2	2194	1617	0.54	158.1	10.2	83°C (@70% 10 min Constant)
1400	40	49.2	7.4	2903	2909	0.93	364.1	8.0	83°C (@70% 10 min Constant)
1500	50	48.9	14.1	3552	4404	1.39	689.5	6.4	83°C (@70% 10 min Constant)
1600	60	48.5	21.0	4084	5676	1.74	1018.5	5.6	83°C (@70% 10 min Constant)
1700	70	48.1	28.8	4565	6716	2.07	1385.3	4.8	83°C (@70% 10 min Constant)
1800	80	47.7	37.9	5019	7640	2.38	1807.8	4.2	103°C (Maximum)
1900	90	47.1	49.0	5456	8227	2.65	2307.9	3.6	103°C (Maximum)
1950	95	46.7	59.4	5692	8655	2.88	2774.0	3.1	103°C (Maximum)
2000	100	46.7	59.3	5687	8519	2.88	2769.3	3.1	103°C (Maximum)

Performance Summary:

• Best Efficiency: 22×6.6 CF_FX @ 30% throttle (12.3 g/W, 1,044g thrust)
• Maximum Thrust: 21×7.3 CF_FX @ 95% throttle (9,446g thrust, 4.2 g/W)
• Balanced Performance: 22×6.6 CF_FX @ 60% throttle (4,302g thrust, 7.1 g/W)
• Operating Temperature: 56-103°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 170 KV

• Large commercial UAVs
• Heavy payload applications (up to 10kg+)
• High-performance missions
• Professional cinematography and surveying

340 KV

340 KV - Specifications

Motor Specifications:

• KV Rating: 340 RPM/V
• Kt (Motor Torque Constant): 0.0407 Nm/A @ 4508 RPM
• Weight: 389 g ± 5 g
• Max Thrust: 5,845g (with 22×6.6 CF_FX prop)
• Voltage Range: 22V – 25V (6S LiPo)
• Io (No Load Current @ 24V): 2.8A
• Max Continuous Current: 40A (180s)
• Max Continuous Power: 900W (180s)
• Power Density: 2.43 W/g (Rated), 3.87 W/g (Maximum)
• Motor Diameter: Ø 68.8 mm
• Motor Length: 39 mm
• Shaft Diameter: Ø 6 mm
• Stator Poles: 24S
• Magnetic Poles: 28P
• Bearings: Triple 626-2Z Sealed
• Inductance per phase (Winding Inductance): 0.020 (≈0.03) mH
• Resistance per phase (Rph): 0.03 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 30 mm, depth: 10 mm
• Compatible Propeller Size: 22" to 24"
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, depth: 8 mm

Test Data - 340 KV

22 x 6.6 CF_FX Propeller

Test Conditions:

• ESC: 80 A 6S
• Battery: TB – 22000 mAh 6S
• Test Date: 03-10-2024
• Environmental Temp: 31°C
• Humidity: 64%
• Cross-winds: Moderate

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	24.9	1.6	1722	593	0.15	39.8	14.9	48°C (@70% 10 min Constant)
1400	40	24.8	3.9	2396	1188	0.31	96.7	12.3	48°C (@70% 10 min Constant)
1500	50	24.6	8.8	3184	2053	0.54	216.5	9.5	48°C (@70% 10 min Constant)
1600	60	24.3	16.2	3933	3161	0.78	393.7	8.0	48°C (@70% 10 min Constant)
1700	70	23.9	25.5	4508	4202	1.04	609.5	6.9	48°C (@70% 10 min Constant)
1800	80	23.5	38.2	5088	5088	1.32	897.7	5.7	48°C (Maximum)
1900	90	23.0	51.6	5553	5553	1.57	1186.8	4.7	48°C (Maximum)
1950	95	22.7	59.5	5756	5756	1.73	1350.7	4.3	48°C (Maximum)
2000	100	22.6	63.3	5845	5845	1.73	1430.6	4.1	48°C (Maximum)

Performance Summary:

• Best Efficiency: 22×6.6 CF_FX @ 30% throttle (14.9 g/W, 593g thrust)
• Maximum Thrust: 22×6.6 CF_FX @ 100% throttle (5,845g thrust, 4.1 g/W)
• Balanced Performance: 22×6.6 CF_FX @ 60% throttle (3,161g thrust, 8.0 g/W)
• Operating Temperature: 48°C across all throttle ranges
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 340 KV

• Medium to large commercial UAVs
• 6S battery system applications
• Moderate payload applications (up to 6kg)
• Extended flight time missions
• Professional cinematography

Common Resources

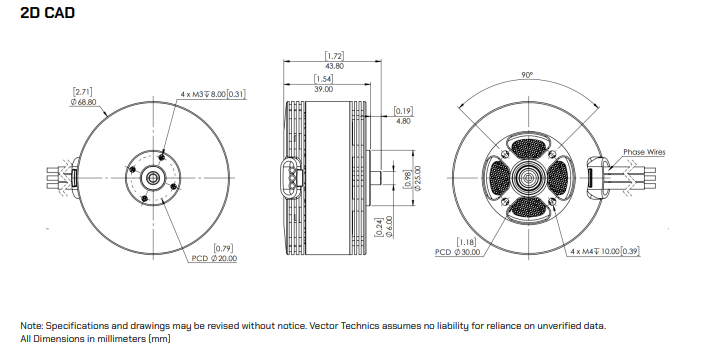

2D CAD Drawing

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 6015 PRO motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 30 mm, depth: 10 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, depth: 8 mm
• Motor Diameter: Ø 68.8 mm
• Motor Length: 39 mm
• Stick Out Shaft Diameter: Ø 6 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
60A	General purpose	Standard FOC
80A	High performance	Advanced telemetry, FOC
100A+	Heavy lift	Enhanced cooling, FOC, high current

ESC Requirements:

• Continuous rating: 60A minimum (80A recommended)
• Voltage support: 12S (44-50V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support, FOC capability mandatory

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
2480 CFRP_FX	High	Maximum thrust	Excellent
VT 2408	High	Balanced	Very Good
22-24"	Medium-High	General purpose	Good

Propeller Selection Guidelines:

• Start with VT 2408 for best efficiency and balanced performance
• Use 2480 CFRP_FX for maximum thrust applications
• Always balance propellers before installation
• Carbon fiber recommended for high performance
• Ensure adequate propeller clearance (minimum 20mm)

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 6015 PRO 150KV
   • Propeller: VT 2408 CFRP_FX
   • ESC: 60A FOC
   • Battery: 12S 16000mAh
   • Expected Performance: 5,473g thrust, 400+ seconds runtime

2. Balanced Build (General purpose)

   • Motor: 6015 PRO 150KV
   • Propeller: VT 2408 CFRP_FX
   • ESC: 80A FOC
   • Battery: 12S 12000mAh
   • Expected Performance: 7,215g thrust, 300-400 seconds runtime

3. Performance Build (Maximum thrust)

   • Motor: 6015 PRO 150KV
   • Propeller: 2480 CFRP_FX
   • ESC: 100A FOC
   • Battery: 12S 10000mAh
   • Expected Performance: 9,980g thrust, 240 seconds runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M4 bolts)
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>80°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Triple 626-2Z Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Comparison with Similar Motors

PRO Series Comparison

Feature	6015 PRO	6010 PRO	8015 PRO
Weight	363-389 g	240 g	~500 g
Max Thrust	9,980g (150KV)	6,778g (160KV)	~12 kg
Voltage	48V (12S)	48V (12S)	48V (12S)
Prop Size	22-24"	20-23"	up to 26"
Application	Large UAVs	Large UAVs	Very Large UAVs
Mounting	M4 bolts	M3/M4 bolts	M4 bolts
Power Density	4.22 W/g	7.13 W/g	~5.0 W/g

SL Series Alternatives

Feature	6015 PRO	8008 SL	8015 SL
Weight	363-389 g	210 g	420 g
Max Thrust	9,980g	~10 kg	13.5 kg
Voltage	48V (12S)	48V (12S)	48V (12S)
Prop Size	22-24"	28-30"	up to 30"
Build	Standard	Lightweight	Heavy-duty

Selection Guide:

• 6015 PRO: Best for large UAVs requiring 10kg thrust capacity
• 6010 PRO: Lower thrust option for medium-large UAVs
• 8015 PRO: Higher thrust capacity with similar voltage
• 8008/8015 SL: Alternative for very large commercial UAVs

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 80°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S LiPo batteries (44-50V range)
• Do not exceed maximum continuous current (30A @ 180s)
• Ensure proper battery discharge rates (C-rating)
• Use ESCs rated for 12S operation with FOC capability

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt depth (5mm for 170/340KV, 8-10mm for 150KV mounts)
• Verify rotation direction before propeller installation
• Maintain minimum 20mm clearance to frame
• Use proper size mounting hardware (M4 for motor, M3 for propeller)
• Ensure triple bearing configuration is properly seated

Emergency Procedures:

• If motor overheats (>80°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• PRO Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: February 2026
• Product Code: VT-6015PRO-150KV
• Document ID: VT-DOC-6015PRO-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
