10020 PRO Motor

The 10020 PRO motor is a high-performance brushless motor designed for very large UAV applications. This documentation covers the 150 KV variant with detailed specifications and test data.

Key Features:

• High thrust up to 24,004g for very large UAVs
• Robust Dual 6902-2Z Sealed bearings for long life
• Optimized for 30"–34" propellers
• Lightweight design (~860g) for efficient heavy-lift performance
• High power density (up to 7.38 W/g maximum)
• Professional-grade performance for industrial, surveying, and cinematography drones

150 KV

150 KV - Specifications

Motor Specifications:

• KV Rating: 150 RPM/V
• Kt (Motor Torque Constant): 0.0851 Nm/A @ 4170 RPM
• Weight: 860 g ± 2%
• Max Thrust: 24,004 g (with NW 30 CF_FX 14S prop)
• Voltage Range: 44V – 52V (12S LiPo)
• Io (No Load Current @ 48V): 10A
• Max Continuous Current: 75A (180s)
• Max Continuous Power: 3532W (180s)
• Power Density: 3.96 W/g (Rated), 7.38 W/g (Maximum)
• Motor Diameter: Ø 112 mm
• Motor Length: 47.7 mm
• Shaft Diameter: Ø 30 mm
• Stator Poles: 36S
• Magnetic Poles: 42P
• Bearings: Dual 6902-2Z Sealed
• Inductance per phase (Winding Inductance): 0.0103 (≈0.03) mH
• Resistance per phase (Rph): 0.01 (≈0.03) Ω
• Motor Mount Pattern @ 90°: 4 × M5 @ PCD Ø 50 mm, depth: 12.5 mm
• Compatible Propeller Size: 30" to 34"
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, depth: 7.5 mm; 4 × M4 @ PCD Ø 23 mm, depth: 12 mm

Test Data - 150 KV

MZ 30 x 10 CF_FX Propeller

Test Conditions:

• ESC: TM 200A 12S FLAME
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 27-05-2025
• Environmental Temp: 31°C
• Humidity: 83%
• Cross-winds: Moderate

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.9	8.7	2095	3575	1.32	434.1	8.2	62°C (@70% 10 min Constant)
1400	40	49.6	15.4	2650	5465	1.98	763.8	7.2	62°C (@70% 10 min Constant)
1500	50	49.0	29.1	3300	8962	3.20	1425.9	6.3	62°C (@70% 10 min Constant)
1600	60	48.2	45.2	3789	11777	4.38	2178.6	5.4	62°C (@70% 10 min Constant)
1700	70	47.3	63.6	4179	14602	5.55	3008.3	4.9	62°C (@70% 10 min Constant)
1800	80	46.4	83.3	4556	16917	6.48	3865.1	4.4	65°C (Maximum)
1900	90	45.1	109.8	4893	19934	7.67	4952.0	4.0	65°C (Maximum)
1950	95	44.5	121.6	5029	21140	8.10	5411.2	3.9	65°C (Maximum)
2000	100	43.8	135.7	5153	22103	8.64	5943.7	3.7	65°C (Maximum)

TM 30 x 10.5 CF_FX Propeller

Test Conditions:

• ESC: TM 200A 12S FLAME
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 27-05-2025
• Environmental Temp: 31°C
• Humidity: 83%
• Cross-winds: Moderate

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	50.0	8.7	2130	3471	1.27	435.0	8.0	60°C (@70% 10 min Constant)
1400	40	49.7	15.4	2664	5496	1.99	765.4	7.2	60°C (@70% 10 min Constant)
1500	50	49.1	27.8	3277	8637	3.07	1365.0	6.3	60°C (@70% 10 min Constant)
1600	60	48.4	43.2	3823	11590	4.16	2090.9	5.5	60°C (@70% 10 min Constant)
1700	70	47.7	60.1	4218	14244	5.22	2866.8	5.0	60°C (@70% 10 min Constant)
1800	80	46.6	80.8	4612	16973	6.31	3765.3	4.5	63°C (Maximum)
1900	90	45.6	103.3	5032	19113	7.17	4710.5	4.1	63°C (Maximum)
1950	95	45.0	114.8	5162	20467	7.63	5166.0	4.0	63°C (Maximum)
2000	100	44.4	128.2	5311	21686	8.08	5692.1	3.8	63°C (Maximum)

NW 30 CF_FX Propeller

Test Conditions:

• ESC: TM 200A 12S FLAME
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 27-05-2025
• Environmental Temp: 31°C
• Humidity: 83%
• Cross-winds: Moderate

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.4	8.4	2098	3153	1.20	263.5	7.5	59°C (@70% 10 min Constant)
1400	40	49.5	15.8	2713	5282	1.94	550.9	6.8	59°C (@70% 10 min Constant)
1500	50	49.0	26.3	3303	7645	2.82	974.9	5.9	59°C (@70% 10 min Constant)
1600	60	48.3	39.5	3818	10263	3.72	1486.6	5.4	59°C (@70% 10 min Constant)
1700	70	47.6	54.4	4270	12755	4.59	2051.4	4.9	59°C (@70% 10 min Constant)
1800	80	46.7	72.3	4692	14996	5.55	2725.6	4.4	63°C (Maximum)
1900	90	45.6	95.5	5136	17527	6.15	3499.6	4.0	63°C (Maximum)
1950	95	45.1	103.0	5275	18151	6.73	3715.7	3.9	63°C (Maximum)
2000	100	44.5	115.7	5442	19252	7.23	4118.2	3.7	63°C (Maximum)

NW 32 CF_FX Propeller

Test Conditions:

• ESC: TM 200A 12S FLAME
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 27-05-2025
• Environmental Temp: 31°C
• Humidity: 83%
• Cross-winds: Moderate

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.4	10.2	2014	4051	1.63	503.9	8.0	65°C (@70% 10 min Constant)
1400	40	48.9	19.4	2527	6739	2.68	948.7	7.1	65°C (@70% 10 min Constant)
1500	50	48.3	33.4	3108	9998	3.86	1613.2	6.2	65°C (@70% 10 min Constant)
1600	60	47.4	52.9	3609	13424	5.23	2507.5	5.4	65°C (@70% 10 min Constant)
1700	70	46.3	73.7	3971	16340	6.48	3412.3	4.8	65°C (@70% 10 min Constant)
1800	80	45.3	94.4	4320	18789	7.43	4276.3	4.4	70°C (Maximum)
1900	90	43.9	122.4	4626	21740	8.61	5373.4	4.0	70°C (Maximum)
1950	95	43.2	135.8	4739	22759	9.07	5866.6	3.9	70°C (Maximum)
2000	100	42.5	149.5	4855	23838	9.49	6353.8	3.8	70°C (Maximum)

NW 30 CF_FX Propeller (14S)

Test Conditions:

• ESC: TM 200A 14S
• Battery: EP 40000mAh 14S
• Test Date: 01-12-2025
• Environmental Temp: 25°C
• Humidity: 85%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	57.64	10.1	2333	3840	1.612	582.4	6.5	N/A (@70% 10 min Constant)
1400	40	57.21	20.6	3108	6621	2.751	1178.5	5.6	N/A (@70% 10 min Constant)
1500	50	56.63	34.22	3737	9782	3.911	1938.0	5.0	N/A (@70% 10 min Constant)
1600	60	55.95	49.77	4310	13170	4.986	2784.4	4.7	N/A (@70% 10 min Constant)
1700	70	55.03	70.41	4831	16858	6.204	3874.8	4.3	N/A (@70% 10 min Constant)
1800	80	54.01	93.99	5334	19745	7.384	5076.2	3.8	N/A (Maximum)
1900	90	52.85	121.24	5812	22002	8.608	6407.5	3.4	N/A (Maximum)
1950	95	52.27	134.17	5965	23152	9.171	7013.0	3.3	N/A (Maximum)
2000	100	51.58	152.25	6209	24004	9.798	7852.9	3.0	N/A (Maximum)

Performance Summary:

• Best Efficiency: MZ 30×10 CF_FX @ 30% throttle (8.2 g/W, 3,575g thrust)
• Maximum Thrust: NW 30 CF_FX (14S) @ 100% throttle (24,004g thrust, 3.0 g/W)
• Balanced Performance: TM 30×10.5 CF_FX @ 30% throttle (8.0 g/W, 3,471g thrust)
• Operating Temperature: 59-70°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 150 KV

• Very large commercial UAVs
• Heavy payload applications
• Long-endurance missions with very large propellers
• Professional cinematography and surveying
• Agricultural and industrial heavy-lift drones

Common Resources

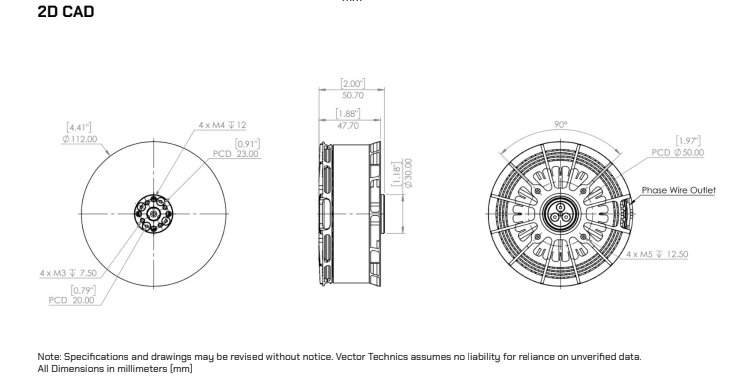

2D CAD Drawing

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 10020 PRO motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M5 @ PCD Ø 50 mm, depth: 12.5 mm
• Propeller Mount Pattern (M3): 4 × M3 @ PCD Ø 20 mm, depth: 7.5 mm
• Propeller Mount Pattern (M4): 4 × M4 @ PCD Ø 23 mm, depth: 12 mm
• Motor Diameter: Ø 112 mm
• Motor Length: 47.7 mm
• Stick Out Shaft Diameter: Ø 30 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
120A	General purpose	Standard FOC
150A	High performance	Advanced telemetry, FOC
200A+	Heavy lift	Enhanced cooling, FOC, high current

ESC Requirements:

• Continuous rating: 120A minimum (200A recommended)
• Voltage support: 12S-14S (44-58V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support, FOC capability mandatory

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
NW 32 CF_FX	High	Maximum thrust & efficiency	Excellent
MZ 30×10 CF_FX	Medium	Balanced performance	Very Good
TM 30×10.5 CF_FX	High	High thrust	Very Good
NW 30 CF_FX	Medium	General purpose	Good

Propeller Selection Guidelines:

• Start with NW 32 CF_FX for best efficiency and maximum thrust
• Use TM 30×10.5 CF_FX for balanced performance
• Always balance propellers before installation
• Carbon fiber recommended for high performance
• Ensure adequate propeller clearance (minimum 30mm)

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 10020 PRO 150KV
   • Propeller: NW 32 CF_FX
   • ESC: 200A FOC
   • Battery: 12S 22000mAh
   • Expected Performance: 16,340g thrust, 450+ seconds runtime

2. Balanced Build (General purpose)

   • Motor: 10020 PRO 150KV
   • Propeller: MZ 30×10 CF_FX
   • ESC: 200A FOC
   • Battery: 12S 22000mAh
   • Expected Performance: 14,602g thrust, 350-450 seconds runtime

3. Performance Build (Maximum thrust)

   • Motor: 10020 PRO 150KV
   • Propeller: NW 30 CF_FX (14S)
   • ESC: 200A 14S FOC
   • Battery: 14S 40000mAh
   • Expected Performance: 24,004g thrust, 250 seconds runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M5 bolts)
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>70°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Dual 6902-2Z Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Comparison with Similar Motors

PRO Series Comparison

Feature	10020 PRO	8020 PRO
Weight	860 g	750 g
Max Thrust	24,004g (150KV)	15,971g (120KV)
Voltage	48V (12S) / 56V (14S)	48V (12S)
Prop Size	30-34"	28-32"
Application	Very Large UAVs	Very Large UAVs
Mounting	M5 bolts	M4/M5 bolts
Power Density	7.38 W/g	5.03 W/g

Selection Guide:

• 10020 PRO: Best for very large UAVs with 30-34" propellers, highest thrust capacity and 14S support
• 8020 PRO: Lighter option with excellent efficiency for 28-32" propellers

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 70°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S or 14S LiPo batteries (44-58V range)
• Do not exceed maximum continuous current (75A @ 180s)
• Ensure proper battery discharge rates (C-rating)
• Use ESCs rated for 12S/14S operation with FOC capability

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt depth (12.5mm for motor mount, 7.5mm/12mm for propeller mount)
• Verify rotation direction before propeller installation
• Maintain minimum 30mm clearance to frame
• Use proper size mounting hardware (M5 for motor, M3/M4 for propeller)
• Ensure dual bearing configuration is properly seated

Emergency Procedures:

• If motor overheats (>70°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• PRO Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: August 2026
• Product Code: VT-10020PRO-150KV
• Document ID: VT-DOC-10020PRO-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
