8015 PRO Motor

The 8015 PRO motor is a high-performance brushless motor designed for very large UAV applications. This documentation covers the 100 KV variant with detailed specifications and test data.

Key Features:

• High thrust up to 13,391g for very large UAVs
• Durable dual 689 sealed bearings for long operational life
• Optimized for 28"–30" propellers
• Lightweight design (~450g) for large UAV efficiency
• High power density (up to 6.4 W/g maximum)
• Professional-grade performance for industrial, surveying, and cinematography drones

100 KV

100 KV - Specifications

Motor Specifications:

• KV Rating: 100 RPM/V
• Kt (Motor Torque Constant): 0.1245 Nm/A @ 2995 RPM
• Weight: 450g ± 5g
• Max Thrust: 13,391g (with VT 3010 CFRP_FP prop)
• Voltage Range: 44V – 50V (12S LiPo)
• Io (No Load Current @ 48V): 1.64A
• Max Continuous Current: 40A (180s)
• Max Continuous Power: 1495W (180s)
• Power Density: 4.5 W/g (Rated), 6.4 W/g (Maximum)
• Motor Diameter: Ø 88.4 mm
• Motor Length: 37.5 mm
• Shaft Diameter: Ø 5.9 mm
• Stator Poles: 36S
• Magnetic Poles: 42P
• Bearings: Dual 689 Sealed
• Inductance per phase (Winding Inductance): 0.069 mH (≈0.03)
• Resistance per phase (Rph): 0.07 Ω (≈0.03)
• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 40 mm, depth: 6 mm
• Compatible Propeller Size: 28" to 30"
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 20 mm, depth: 8 mm; 4 × M4 @ PCD Ø 23 mm, depth: 8 mm

Test Data - 100 KV

VT 3010 CFRP_FP Propeller

Test Conditions:

• ESC: TM 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.8	1.9	1163	1346	0.62	94.6	14.2	71°C (@70% 10 min Constant)
1400	40	49.6	4.7	1570	2588	1.15	233.1	11.1	71°C (@70% 10 min Constant)
1500	50	49.2	11.1	2099	4881	2.06	546.1	8.9	71°C (@70% 10 min Constant)
1600	60	48.9	19.1	2505	6919	2.89	934.0	7.4	71°C (@70% 10 min Constant)
1700	70	48.4	28.7	2885	8919	3.67	1389.1	6.4	71°C (@70% 10 min Constant)
1800	80	47.9	40.1	3207	10806	4.43	1920.8	5.6	78°C (Maximum)
1900	90	47.4	53.3	3528	12622	5.10	2526.4	5.0	78°C (Maximum)
1950	95	47.1	59.0	3619	13391	5.42	2778.9	4.8	78°C (Maximum)
2000	100	47.2	57.8	3648	13277	5.33	2728.2	4.9	78°C (Maximum)

TM 30 x 10.5 CF_FX Propeller

Test Conditions:

• ESC: TM 80A 12S
• Battery: 2 × TB – 22000 mAh 12S
• Test Date: 03-05-2024
• Environmental Temp: 35°C
• Humidity: 36%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	49.9	2.3	1428	1296	0.60	114.8	11.3	70°C (@70% 10 min Constant)
1400	40	49.7	5.1	1907	2529	1.00	253.5	10.0	70°C (@70% 10 min Constant)
1500	50	49.5	9.7	2383	4147	1.60	480.2	8.6	70°C (@70% 10 min Constant)
1600	60	49.2	15.7	2781	5777	2.20	772.4	7.5	70°C (@70% 10 min Constant)
1700	70	48.8	22.3	3117	7386	2.70	1088.2	6.8	70°C (@70% 10 min Constant)
1800	80	48.4	30.7	3450	9237	3.30	1485.9	6.2	76°C (Maximum)
1900	90	47.9	40.9	3748	11086	4.00	1959.1	5.7	76°C (Maximum)
1950	95	47.5	49.4	3955	12704	4.50	2346.5	5.4	76°C (Maximum)
2000	100	47.5	49.3	3944	12655	4.50	2341.8	5.4	76°C (Maximum)

Performance Summary:

• Best Efficiency: VT 3010 CFRP_FP @ 30% throttle (14.2 g/W, 1,346g thrust)
• Maximum Thrust: VT 3010 CFRP_FP @ 95% throttle (13,391g thrust, 4.8 g/W)
• Balanced Performance: VT 3010 CFRP_FP @ 70% throttle (8,919g thrust, 6.4 g/W)
• Operating Temperature: 70-78°C depending on load and propeller
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 100 KV

• Very large commercial UAVs
• Heavy payload applications (up to 13kg)
• Long-endurance missions with large propellers
• Professional cinematography and surveying
• Agricultural and industrial drones

Product Images

8015 PRO Motor – External View

Download High-Resolution Image

Common Resources

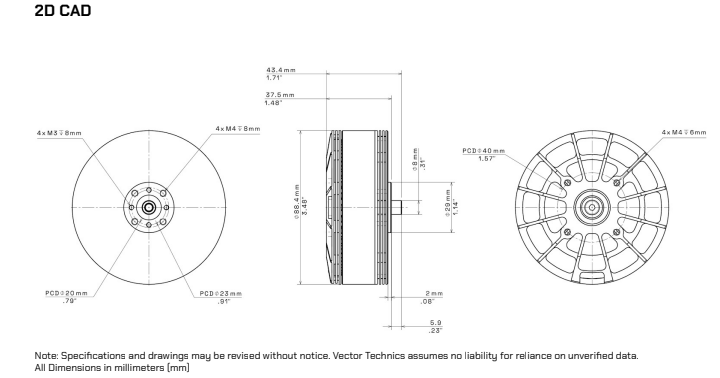

2D CAD Drawing

The 2D CAD drawing provides detailed dimensions and mounting specifications for the 8015 PRO motor.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M4 @ PCD Ø 40 mm, depth: 6 mm
• Propeller Mount Pattern (M3): 4 × M3 @ PCD Ø 20 mm, depth: 8 mm
• Propeller Mount Pattern (M4): 4 × M4 @ PCD Ø 23 mm, depth: 8 mm
• Motor Diameter: Ø 88.4 mm
• Motor Length: 37.5 mm
• Stick Out Shaft Diameter: Ø 5.9 mm

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
80A	General purpose	Standard FOC
100A	High performance	Advanced telemetry, FOC
120A+	Heavy lift	Enhanced cooling, FOC, high current

ESC Requirements:

• Continuous rating: 80A minimum (100A recommended)
• Voltage support: 12S (44-50V) capable
• Protocol: DShot600 or higher recommended
• Features: Active braking, telemetry support, FOC capability mandatory

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
VT 3010 CFRP_FP	High	Maximum thrust & efficiency	Excellent
TM 30×10.5 CF_FX	High	Balanced thrust	Very Good

Propeller Selection Guidelines:

• Start with VT 3010 CFRP_FP for best efficiency and maximum thrust
• Use TM 30×10.5 CF_FX for balanced performance
• Always balance propellers before installation
• Carbon fiber recommended for high performance
• Ensure adequate propeller clearance (minimum 25mm)

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 8015 PRO 100KV
   • Propeller: VT 3010 CFRP_FP
   • ESC: 80A FOC
   • Battery: 12S 16000mAh
   • Expected Performance: 8,919g thrust, 450+ seconds runtime

2. Balanced Build (General purpose)

   • Motor: 8015 PRO 100KV
   • Propeller: TM 30×10.5 CF_FX
   • ESC: 100A FOC
   • Battery: 12S 12000mAh
   • Expected Performance: 7,386g thrust, 350-450 seconds runtime

3. Performance Build (Maximum thrust)

   • Motor: 8015 PRO 100KV
   • Propeller: VT 3010 CFRP_FP
   • ESC: 120A FOC
   • Battery: 12S 10000mAh
   • Expected Performance: 13,391g thrust, 250 seconds runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification (M4 bolts)
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>80°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Dual 689 Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Comparison with Similar Motors

PRO Series Comparison

Feature	8015 PRO	6020 PRO	6015 PRO
Weight	450 g	425 g	380 g
Max Thrust	13,391g (100KV)	13,902g (180KV)	10,268g (170KV)
Voltage	48V (12S)	48V (12S)	48V (12S)
Prop Size	28-30"	22-26"	22-24"
Application	Very Large UAVs	Very Large UAVs	Large UAVs
Mounting	M4 bolts	M3 bolts	M4 bolts
Power Density	6.4 W/g	6.86 W/g	7.02 W/g

Selection Guide:

• 8015 PRO: Best for very large UAVs with 28-30" propellers, highest efficiency
• 6020 PRO: Higher thrust with 22-26" propellers, compact mounting
• 6015 PRO: Lighter option for large UAVs with excellent power density

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 78°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 12S LiPo batteries (44-50V range)
• Do not exceed maximum continuous current (40A @ 180s)
• Ensure proper battery discharge rates (C-rating)
• Use ESCs rated for 12S operation with FOC capability

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt depth (6mm for motor mount, 8mm for propeller mount)
• Verify rotation direction before propeller installation
• Maintain minimum 25mm clearance to frame
• Use proper size mounting hardware (M4 for motor, M3/M4 for propeller)
• Ensure dual bearing configuration is properly seated

Emergency Procedures:

• If motor overheats (>78°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• PRO Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 1.0
• Last Updated: February 2026
• Product Code: VT-8015PRO-100KV
• Document ID: VT-DOC-8015PRO-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
