4006 SL Motor

The 4006 SL motor is available in three KV configurations to suit different performance requirements. Select your variant below to view specific specifications and test data.

Key Features:

• High efficiency for extended flight times
• Durable construction with premium materials
• Optimized for 13"–16" propellers
• Lightweight design (67g) for agile performance
• Multiple KV options to suit different applications

380 KV

380 KV - Specifications

Motor Specifications:

• KV Rating: 380 RPM/V
• Kt (Motor Torque Constant): 0.033 Nm/A @ 4826 RPM
• Weight: 67g ± 2g
• Max Thrust: 1,935g (with TM 16.2×5.3 prop)
• Voltage Range: 22V – 25V (6S LiPo)
• Io (24@V): 0.6A (24@V)
• Max Continuous Current: 9A (180s)
• Max Continuous Power: 233W (180s)
• Power Density: 2.9 W/g (Rated), 4.73 W/g (Maximum)

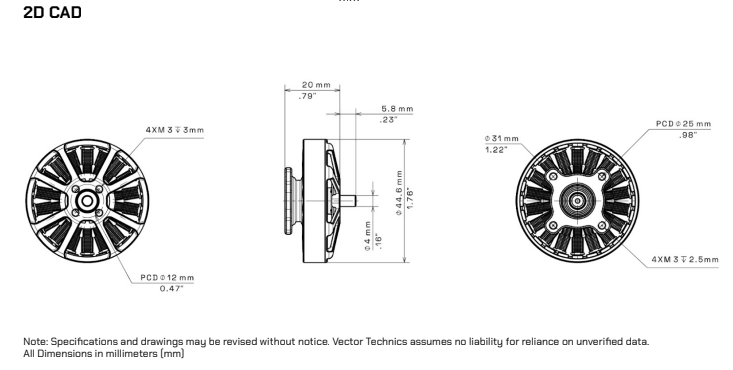

• Motor Diameter: Ø 44.6 mm
• Motor Length: 20 mm
• Stick Out Shaft Diameter: Ø 4 mm
• Stator Poles: 18S
• Magnetic Poles: 24P
• Bearings: Dual 619/4-2RS Sealed
• Inductance per phase (Winding Inductance): 0.119 (≈0.03) mH
• Resistance per phase (Rph): 0.23 (≈0.03) Ω
• Motor Mount Pattern @ 90 deg: 4 × M3 @ PCD Ø 25 mm, depth: 2.5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 12 mm, depth: 3 mm
• Compatible Propeller Size: 13" to 16"

Test Data - 380 KV

TM 14 x 4.8 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 10-08-2024
• Environmental Temp: 29°C
• Humidity: 60%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.1	0.9	2586	194	0.03	22.6	8.6	45°C (@70% 10 min Constant)
1400	40	25.0	1.0	3075	327	0.05	25.0	13.1	45°C (@70% 10 min Constant)
1500	50	25.0	2.1	3979	570	0.09	52.5	10.9	45°C (@70% 10 min Constant)
1600	60	25.0	3.5	4755	797	0.13	87.5	9.1	45°C (@70% 10 min Constant)
1700	70	24.9	5.2	5337	1067	0.18	129.5	8.2	45°C (@70% 10 min Constant)
1800	80	24.8	7.1	5964	1285	0.21	176.1	7.3	50°C (Maximum)
1900	90	24.7	9.6	6550	1575	0.26	237.1	6.6	50°C (Maximum)
1950	95	24.7	10.3	6617	1657	0.27	254.4	6.5	50°C (Maximum)
2000	100	24.7	10.4	6602	1663	0.28	256.9	6.5	50°C (Maximum)

SS 15 x 5.5 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 04-04-2025
• Environmental Temp: 33°C
• Humidity: 57%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.1	0.5	2127	192	0.04	12.6	15.3	58°C (@70% 10 min Constant)
1400	40	25.0	1.3	2860	367	0.07	32.5	11.3	58°C (@70% 10 min Constant)
1500	50	25.0	2.7	3659	625	0.12	67.5	9.3	58°C (@70% 10 min Constant)
1600	60	24.9	4.5	4294	890	0.17	112.1	7.9	58°C (@70% 10 min Constant)
1700	70	24.8	6.7	4861	1154	0.22	166.2	6.9	58°C (@70% 10 min Constant)
1800	80	24.7	9.2	5354	1409	0.27	227.2	6.2	61°C (Maximum)
1900	90	24.5	12.4	5788	1697	0.33	303.8	5.6	61°C (Maximum)
1950	95	24.5	13.0	5833	1756	0.34	318.5	5.5	61°C (Maximum)
2000	100	24.5	13.0	5837	1751	0.34	318.5	5.5	61°C (Maximum)

TM 16.2 x 5.3 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 10-08-2024
• Environmental Temp: 29°C
• Humidity: 60%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.1	0.6	2100	223	0.05	15.1	14.8	53°C (@70% 10 min Constant)
1400	40	25.1	1.4	2801	424	0.08	35.1	12.1	53°C (@70% 10 min Constant)
1500	50	25.0	2.8	3582	722	0.13	70.0	10.3	53°C (@70% 10 min Constant)
1600	60	25.0	4.7	4265	1010	0.18	117.5	8.6	53°C (@70% 10 min Constant)
1700	70	24.9	6.9	4826	1293	0.23	171.8	7.5	53°C (@70% 10 min Constant)
1800	80	24.8	9.4	5337	1511	0.27	233.1	6.5	60°C (Maximum)
1900	90	24.7	12.5	5770	1862	0.33	308.8	6.0	60°C (Maximum)
1950	95	24.6	13.2	5834	1935	0.34	324.7	6.0	60°C (Maximum)
2000	100	24.7	13.1	5853	1889	0.34	323.6	5.8	60°C (Maximum)

Performance Summary:

• Best Efficiency: TM 14×4.8 @ 40% throttle (13.1 g/W, 327g thrust)
• Maximum Thrust: TM 16.2×5.3 @ 95% throttle (1,935g thrust, 6.0 g/W)
• Balanced Performance: TM 14×4.8 @ 70% throttle (1,067g thrust, 8.2 g/W)
• Operating Temperature: 45-61°C depending on load
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 380 KV

• Long-endurance aerial photography
• Efficiency-focused racing
• Extended surveillance missions
• Battery life-critical applications

400 KV

400 KV - Specifications

Motor Specifications:

• KV Rating: 400 RPM/V
• Kt (Motor Torque Constant): 0.030 Nm/A @ 4800 RPM
• Weight: 67g ± 2g
• Max Thrust: 1,787g (with TM 16.2×5.3 prop)
• Voltage Range: 22V – 25V (6S LiPo)
• Io (24@V): 0.7A (24@V)
• Max Continuous Current: 10A (180s)
• Max Continuous Power: 250W (180s)
• Power Density: 2.72 W/g (Rated), 5.11 W/g (Maximum)
• Motor Diameter: Ø 44.6 mm
• Motor Length: 20 mm
• Stick Out Shaft Diameter: Ø 4 mm
• Stator Poles: 18S
• Magnetic Poles: 24P
• Bearings: Dual 619/4-2RS Sealed
• Inductance per phase (Winding Inductance): 0.110 (≈0.03) mH
• Resistance per phase (Rph): 0.23 (≈0.03) Ω
• Motor Mount Pattern @ 90 deg: 4 × M3 @ PCD Ø 25 mm, depth: 2.5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 12 mm, depth: 3 mm
• Compatible Propeller Size: 13" to 16"

Test Data - 400 KV

TM 14 x 4.8 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 10-08-2024
• Environmental Temp: 29°C
• Humidity: 60%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.2	0.5	2318	155	0.04	12.6	12.3	52°C (@70% 10 min Constant)
1400	40	25.1	1.1	3126	309	0.06	27.6	11.2	52°C (@70% 10 min Constant)
1500	50	25.1	2.3	4050	564	0.10	57.7	9.8	52°C (@70% 10 min Constant)
1600	60	25.0	3.8	4843	800	0.14	95.0	8.4	52°C (@70% 10 min Constant)
1700	70	25.0	5.6	5417	1044	0.19	140.0	7.5	52°C (@70% 10 min Constant)
1800	80	24.9	7.7	6015	1305	0.23	191.7	6.8	56°C (Maximum)
1900	90	24.8	10.4	6586	1591	0.29	257.9	6.2	56°C (Maximum)
1950	95	24.8	10.9	6700	1652	0.29	270.3	6.1	56°C (Maximum)
2000	100	24.8	10.9	6703	1644	0.29	270.3	6.1	56°C (Maximum)

SS 15 x 5.5 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 04-04-2025
• Environmental Temp: 33°C
• Humidity: 57%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.1	0.6	2148	193	0.04	15.1	12.8	55°C (@70% 10 min Constant)
1400	40	25.0	1.4	2892	368	0.07	35.0	10.5	55°C (@70% 10 min Constant)
1500	50	25.0	2.8	3685	611	0.12	70.0	8.7	55°C (@70% 10 min Constant)
1600	60	24.9	4.7	4340	876	0.17	117.0	7.5	55°C (@70% 10 min Constant)
1700	70	24.8	6.9	4913	1136	0.22	171.1	6.6	55°C (@70% 10 min Constant)
1800	80	24.7	9.7	5381	1454	0.28	239.6	6.1	61°C (Maximum)
1900	90	24.5	13.0	5820	1738	0.34	318.5	5.5	61°C (Maximum)
1950	95	24.5	13.5	5884	1780	0.34	330.8	5.4	61°C (Maximum)
2000	100	24.5	13.6	5868	1787	0.35	333.2	5.4	61°C (Maximum)

TM 16.2 x 5.3 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 10-08-2024
• Environmental Temp: 29°C
• Humidity: 60%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.0	0.7	2120	240	0.05	17.5	13.7	55°C (@70% 10 min Constant)
1400	40	25.0	1.6	2815	457	0.09	40.0	11.4	55°C (@70% 10 min Constant)
1500	50	24.9	3.1	3613	797	0.14	77.2	10.3	55°C (@70% 10 min Constant)
1600	60	24.8	5.0	4288	1047	0.19	124.0	8.4	55°C (@70% 10 min Constant)
1700	70	24.7	7.4	4812	1327	0.24	182.8	7.3	55°C (@70% 10 min Constant)
1800	80	24.6	10.0	5311	1565	0.29	246.0	6.4	61°C (Maximum)
1900	90	24.5	13.2	5747	1882	0.34	323.4	5.8	61°C (Maximum)
1950	95	24.5	13.9	5809	1934	0.35	340.6	5.7	61°C (Maximum)
2000	100	24.5	14.0	5785	1956	0.36	343.0	5.7	61°C (Maximum)

Performance Summary:

• Best Efficiency: TM 16.2×5.3 @ 30% throttle (13.7 g/W, 240g thrust)
• Maximum Thrust: TM 16.2×5.3 @ 100% throttle (1,956g thrust, 5.7 g/W)
• Balanced Performance: TM 14×4.8 @ 70% throttle (1,044g thrust, 7.5 g/W)
• Operating Temperature: 52-61°C depending on load
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 400 KV

• Balanced performance racing
• General purpose aerial photography
• Standard payload missions
• All-around performance

440 KV

440 KV - Specifications

Motor Specifications:

• KV Rating: 440 RPM/V
• Kt (Motor Torque Constant): 0.0329 Nm/A @ 5100 RPM
• Weight: 67g ± 2g
• Max Thrust: 2,206g (with TM 16.2×5.3 prop)
• Voltage Range: 22V – 25V (6S LiPo)
• Io (24@V): 0.6A (24@V)
• Max Continuous Current: 12A (180s)
• Max Continuous Power: 280W (180s)
• Power Density: 3.14 W/g (Rated), 5.96 W/g (Maximum)
• Motor Diameter: Ø 44.6 mm
• Motor Length: 20 mm
• Stick Out Shaft Diameter: Ø 4 mm
• Stator Poles: 18S
• Magnetic Poles: 24P
• Bearings: Dual 619/4-2RS Sealed
• Inductance per phase (Winding Inductance): 0.09 (≈0.03) mH
• Resistance per phase (Rph): 0.16 (≈0.03) Ω
• Motor Mount Pattern @ 90 deg: 4 × M3 @ PCD Ø 25 mm, depth: 2.5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 12 mm, depth: 3 mm
• Compatible Propeller Size: 13" to 16"

Test Data - 440 KV

TM 14 x 4.8 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 10-08-2024
• Environmental Temp: 29°C
• Humidity: 60%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.2	0.6	2531	186	0.03	15.1	12.3	52°C (@70% 10 min Constant)
1400	40	25.1	1.3	3398	346	0.06	32.6	10.6	52°C (@70% 10 min Constant)
1500	50	25.1	2.6	4361	616	0.11	65.3	9.4	52°C (@70% 10 min Constant)
1600	60	25.0	4.4	5135	885	0.15	110.0	8.0	52°C (@70% 10 min Constant)
1700	70	25.0	6.2	5796	1120	0.19	155.0	7.2	52°C (@70% 10 min Constant)
1800	80	24.9	8.7	6452	1439	0.24	216.6	6.6	58°C (Maximum)
1900	90	24.8	11.7	7091	1742	0.29	290.2	6.0	58°C (Maximum)
1950	95	24.8	12.4	7173	1854	0.3	307.5	6.0	58°C (Maximum)
2000	100	24.8	12.3	7200	1798	0.3	305.0	5.9	58°C (Maximum)

SS 15 x 5.5 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 04-04-2025
• Environmental Temp: 33°C
• Humidity: 57%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.1	0.7	2289	248	0.05	17.6	14.1	65°C (@70% 10 min Constant)
1400	40	25.0	1.7	3083	462	0.09	42.5	10.9	65°C (@70% 10 min Constant)
1500	50	24.9	3.5	3971	765	0.14	87.2	8.8	65°C (@70% 10 min Constant)
1600	60	24.8	5.6	4658	1037	0.19	138.9	7.5	65°C (@70% 10 min Constant)
1700	70	24.7	8.3	5231	1342	0.25	205.0	6.5	65°C (@70% 10 min Constant)
1800	80	24.6	11.5	5736	1642	0.31	282.9	5.8	69°C (Maximum)
1900	90	24.4	15.4	6239	1962	0.37	375.8	5.2	69°C (Maximum)
1950	95	24.4	16.0	6316	1998	0.37	390.4	5.1	69°C (Maximum)
2000	100	24.4	16.0	6312	1992	0.37	390.4	5.1	69°C (Maximum)

TM 16.2 x 5.3 CF_FX

Test Conditions:

• ESC: HW 40A 6S
• Battery: TB - 22000mAh 6S
• Test Date: 10-08-2024
• Environmental Temp: 29°C
• Humidity: 60%
• Cross-winds: Mild

PWM	Throttle %	Voltage (V)	Current (A)	RPM	Thrust (g)	Torque (N·m)	Power (W)	Efficiency (g/W)	Temp (°C)
1300	30	25.0	0.8	2268	275	0.06	20.0	13.8	61°C (@70% 10 min Constant)
1400	40	25.0	1.8	3033	503	0.1	45.0	11.2	61°C (@70% 10 min Constant)
1500	50	24.9	3.6	3911	866	0.16	89.6	9.7	61°C (@70% 10 min Constant)
1600	60	24.8	5.9	4618	1192	0.22	146.3	8.1	61°C (@70% 10 min Constant)
1700	70	24.8	8.5	5181	1522	0.28	210.8	7.2	61°C (@70% 10 min Constant)
1800	80	24.6	11.7	5677	1818	0.34	287.8	6.3	66°C (Maximum)
1900	90	24.5	15.5	6204	2139	0.39	379.8	5.6	66°C (Maximum)
1950	95	24.5	16.5	6240	2203	0.42	404.3	5.4	66°C (Maximum)
2000	100	24.5	16.3	6284	2206	0.4	399.4	5.5	66°C (Maximum)

Performance Summary:

• Best Efficiency: TM 16.2×5.3 @ 30% throttle (13.8 g/W, 275g thrust)
• Maximum Thrust: TM 16.2×5.3 @ 100% throttle (2,206g thrust, 5.5 g/W)
• Balanced Performance: TM 14×4.8 @ 70% throttle (1,120g thrust, 7.2 g/W)
• Operating Temperature: 52-69°C depending on load
• Recommended Continuous: 70% throttle max for sustained flight

Recommended Applications - 440 KV

• High-performance racing
• Maximum thrust requirements
• Aggressive flight profiles
• Quick response needed

Common Resources

2D CAD Drawing

The 2D CAD drawing is identical for all KV variants (380KV, 400KV, 440KV) as they share the same physical dimensions and mounting pattern.

Download 2D CAD Drawing

Drawing Specifications:

• Motor Mount Pattern @ 90°: 4 × M3 @ PCD Ø 25 mm (0.98"), depth: 2.5 mm
• Propeller Mount Pattern: 4 × M3 @ PCD Ø 12 mm (0.47"), depth: 3 mm
• Motor Diameter: Ø 44.6 mm (1.76")
• Motor Length: 20 mm (0.79")
• Shaft Diameter: Ø 4 mm
• Stick Out Shaft Diameter: Ø 3.1 mm (0.12")
• Shaft Length: 6.8 mm (0.25")

Note: All dimensions in millimeters (mm). Specifications and drawings may be revised without notice.

Recommended ESC & Propeller

Compatible ESCs

Recommended Configurations:

ESC Rating	Application	Features
30-40A	General purpose	Standard BLHeli_S/32
40-60A	High performance	Advanced telemetry
60A+	Heavy lift	Enhanced cooling

ESC Requirements:

• Continuous rating: 30A minimum (40A recommended)
• Voltage support: 6S (22.2V) capable
• Protocol: DShot300/600 or higher recommended
• Features: Active braking, telemetry support

For detailed ESC specifications and compatibility, see ESC Overview.

Compatible Propellers

Tested Propeller Configurations:

Propeller Size	Pitch	Application	Performance
13×4.4	Low	Efficiency	Good
14×4.8	Medium	Balanced	Excellent
15×5.1	Medium	Performance	Very Good
16.2×5.4	High	Maximum thrust	Good

Propeller Selection Guidelines:

• Start with 14×4.8 for balanced performance
• Use 13×4.4 for maximum efficiency/flight time
• Use 16.2×5.4 for maximum thrust output
• Always balance propellers before installation

For more propeller options, see Propeller Overview.

System Integration

Complete System Recommendations:

1. Efficiency Build (Long flight time)

   • Motor: 4006 SL 380KV
   • Propeller: 13×4.4
   • ESC: 30-40A
   • Battery: 6S 5000mAh
   • Expected Performance: 1,200g thrust, 180+ seconds runtime

2. Balanced Build (General purpose)

   • Motor: 4006 SL 400KV
   • Propeller: 14×4.8
   • ESC: 40A
   • Battery: 6S 4000mAh
   • Expected Performance: 1,600g thrust, 150-180 seconds runtime

3. Performance Build (Maximum thrust)

   • Motor: 4006 SL 440KV
   • Propeller: 16.2×5.4
   • ESC: 60A
   • Battery: 6S 3000mAh
   • Expected Performance: 2,206g thrust, 120 seconds runtime

Maintenance and Inspection

Pre-Flight Checks

Before every flight:

• Visual inspection for physical damage
• Propeller balance and condition check
• Mounting bolt security verification
• Wire routing inspection (no contact with moving parts)
• Brief spin test (listen for unusual sounds)

Periodic Maintenance Schedule

Every 10 Flight Hours:

• Re-torque mounting bolts to specification
• Inspect threadlocker integrity
• Check bearing smoothness (manual rotation)
• Clean motor exterior with compressed air
• Inspect propeller for wear or damage

Every 50 Flight Hours:

• Detailed bearing inspection
• Shaft runout measurement
• Electrical connection integrity check
• Replace propeller if worn
• Document maintenance in flight log

Signs Requiring Immediate Inspection:

• Unusual vibration during operation
• Increased motor temperature (>70°C)
• Grinding or scraping sounds
• Reduced thrust output
• Propeller wobble

Bearing Replacement

Bearing Specifications:

• Type: Dual 619/4-2RS Sealed
• Service Interval: 100-150 flight hours (typical)
• Replacement Procedure: Contact technical support or refer to motor maintenance procedures

Signs of Bearing Wear:

• Grinding or rattling sounds
• Increased vibration
• Shaft play or wobble
• Difficulty rotating by hand
• Increased operating temperature

Comparison with Similar Motors

SL Series Comparison

Feature	4006 SL	8008 SL	8015 SL
Weight	67 g	~350 g	420 g
Max Thrust	1,935g (380KV) / 1,956g (400KV) / 2,206g (440KV)	~10 kg	13.5 kg
Voltage	24V (6S)	48V (12S)	48V (12S)
Prop Size	13–16"	24–28"	up to 30"
Application	Small UAVs	Medium UAVs	Large UAVs
Mounting	M3 bolts	M4 bolts	M4 bolts

PRO Series Alternatives

Feature	4006 SL	4015 PRO
Weight	67 g	250 g
Max Thrust	1,935g (380KV) / 1,956g (400KV) / 2,206g (440KV)	~3.2 kg
Voltage	24V (6S)	24–48V (6S-12S)
Prop Size	13–16"	up to 16"
Build	Lightweight	Heavy-duty
Power Density	4.73 W/g (380KV) / 5.11 W/g (400KV) / 5.96 W/g (440KV)	~4.0 W/g

Selection Guide:

• 4006 SL: Best for weight-critical applications, racing, compact UAVs
• 4015 PRO: Higher thrust capacity, dual voltage support
• 8008/8015 SL: Step up for medium to large UAVs

See Motor Overview for complete specifications.

Safety Notes

⚠️ Important Safety Information

Operational Safety:

• Never run motor without propeller attached (causes unbalanced load)
• Ensure proper cooling during extended operation
• Monitor motor temperature - do not exceed 70°C for sustained periods
• Inspect motor bearings regularly for wear
• Replace damaged propellers immediately

Electrical Safety:

• Verify correct ESC wiring before first power-up
• Use only 6S LiPo batteries (22-25V range)
• Do not exceed maximum continuous current (9A for 380KV, 10A for 400KV, 12A for 440KV @ 180s)
• Ensure proper battery discharge rates (C-rating)

Installation Safety:

• Follow torque specifications exactly
• Never exceed maximum bolt length (3mm)
• Verify rotation direction before propeller installation
• Maintain minimum 10mm clearance to frame

Emergency Procedures:

• If motor overheats (>70°C), land immediately
• If unusual vibration occurs, stop operation
• If motor makes grinding sounds, inspect bearings
• Always have emergency landing plan

Technical Support & Resources

Contact Information

• Technical Support: support@vectortechnics.com
• Phone Support: +918977744819 (Mon-Fri, 9AM-5PM IST)

Related Documentation

• Motor Installation Guide
• ESC Configuration Guide
• Propeller Selection Guide
• Motor Overview
• SuperLight Series

---

Next Steps:

1. Review Installation Guide for mounting procedures
2. Select compatible ESC from tested configurations
3. Choose optimal propeller based on application
4. Review Motor Overview for system integration

Document Information:

• Revision: 2.0
• Last Updated: February 2026
• Product Codes: VT-4006SL-380KV, VT-4006SL-400KV, VT-4006SL-440KV
• Document ID: VT-DOC-4006SL-01

Note: Specifications and drawings may be revised without notice. Vector Technics assumes no liability for reliance on unverified data. All dimensions in millimeters (mm).
